Adjustable Gantry Crane
The adjustable gantry crane offers you a more flexible solution for various tasks. Compared to traditional fixed gantry cranes, this product’s span and height can be adjusted flexibly, enabling it to adapt to different working environments. It works well in both indoor and outdoor settings.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
An adjustable gantry crane offers flexibility during use without requiring building structure modifications, while improving lifting efficiency. It is well-suited for temporary lifting, maintenance operations, production support, and warehouse handling.
This product is commonly found in manufacturing workshops, equipment maintenance centers, warehouses, logistics facilities, mold and die factories, mechanical assembly lines, auto repair shops, steel fabrication workshops, power plants, construction sites, water treatment facilities, ports, terminals, and research laboratories.
Why Operations Choose This Crane
01
Highly Adjustable Design
Allows for adjustable lifting height, enabling a single crane to serve different machines, workstations, and maintenance areas.
02
Adjustable Span
Supports span adjustment to fit various working spaces and load widths, making it suitable for workshops with changing layouts or temporary work areas.
03
Multiple Material Options
Available in high-strength carbon steel for heavy-duty operations, or lightweight aluminum alloy for easier transport and assembly.
04
Smooth Movement
Equipped with wheel locks and brakes to ensure stable operation on flat ground; rail-mounted wheels are also available for guided travel.
05
Hoist Compatibility
Supports electric chain hoists, manual chain hoists, wire rope hoists, and low-headroom hoists, with various trolley options to match the beam design.
06
Safe and Easy to Maintain
Wheel brakes, overload protection devices, and limit switches ensure reliable operation. Daily maintenance is simple, and the crane offers a long service life with proper care.
Not sure which model fits your project? Contact our engineers for selection support.
Typical Applications
Double girder gantry cranes are widely used in:
-
Port & Shipyard Lifting SolutionsPort terminals and shipyards operate in demanding environments where lifting equipment must handle large loads, long shifts, and harsh conditions.
-
KBK Crane SystemsLifting SolutionsKBK crane systems provide a flexible and efficient lifting solution for modern manufacturing facilities. With their modular suspended design, these cranes help move materials safely and accurately while maximizing available workspace.
-
Overhead Crane SolutionsThe overhead crane is an indispensable piece of heavy duty material handling equipment in modern industry. It is composed of parallel fixed tracks above the factory building, the main beams (single or double) that span across, the trolley that can move along the main beam, and the lifting mechanism. The overhead crane can efficiently achieve the lifting and horizontal movement of heavy objects in the factory or specific working areas.
-
Jib Crane Lifting SolutionsA jib crane is a type of lifting equipment. Its horizontal boom is connected to a vertical support and can rotate at multiple angles, enabling radial lifting movement within a fixed working area.
Technical Parameters
The following parameters are standard reference values. Weihua supports full customization based on project requirements.
| Model | Lifting Capacity (t) | Span (m) | Adjustable Height (m) | Lifting Height (m) | Travel Method | Hoist Type |
| AGC-0.5 | 0.5 | 2–4 | 2–3 | Up to 2.5 | Manual Push | Manual Chain Hoist / Electric Chain Hoist |
| AGC-1 | 1 | 2–5 | 2–4 | Up to 3.5 | Manual Push | Manual Chain Hoist / Electric Chain Hoist |
| AGC-2 | 2 | 3–6 | 2.5–5 | Up to 4.5 | Manual Push | Electric Chain Hoist |
| AGC-3 | 3 | 3–6 | 3–5 | Up to 4.5 | Manual Push | Electric Chain Hoist |
| AGC-5 | 5 | 4–7 | 3–6 | Up to 5 | Manual Push / Motorized | Electric Chain Hoist / Wire Rope Hoist |
| AGC-7.5 | 7.5 | 4–8 | 3–6 | Up to 5 | Motorized (Optional) | Wire Rope Hoist |
| AGC-10 | 10 | 5–8 | 3–6 | Up to 5 | Motorized (Optional) | Wire Rope Hoist |
Note: The specifications listed above are for reference only. Technical parameters
can customized as needed
Not sure which model fits your project? Contact our engineers for selection support.
Optional Configuration
Power Supply: 220V / 380V / 415V
Control Mode: Pendant / Remote Control
Hoist Type: Chain Hoist / Wire Rope Hoist
Wheel Type: Nylon / PU / Steel
Frame Material: Steel / Aluminum
Travel Type: Manual / Motorized
Need help choosing the right configuration? Contact our team for expert support.

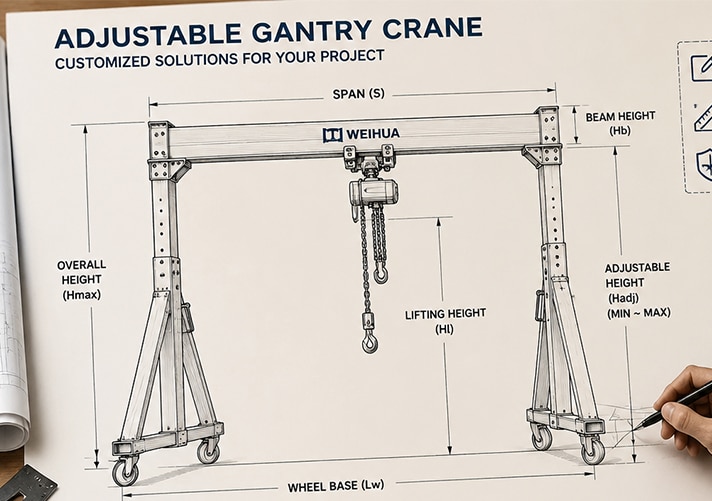

Customization Service
We provide customized adjustable gantry cranes to meet different project requirements, including:
Lifting Capacity
Span
Adjustable Height
Hoist Configuration
Wheel Type
Indoor or Outdoor Use
Contact our engineering team for a solution designed for your project.
Why Choose Weihua Crane?
We provide reliable lifting solutions backed by experienced engineers, strict quality control, and responsive technical support. Every adjustable gantry crane is designed to deliver safe performance, long service life, and excellent value for your investment.
Our strengths include:
Over 30 years of manufacturing experience
Exported to 130+ countries
Advanced production facilities and strict quality control
Certified with ISO, CE, SGS standards
Strong engineering and customization capability
We don’t just supply cranes — we deliver complete lifting solutions.
Still Have Questions About Adjustable Gantry Crane?
We hope our FAQs help you learn more about our products. If you still have questions or need a customized solution, please contact us anytime.
Our team will be happy to assist you.
An adjustable-height gantry crane is a versatile lifting solution that allows users to adjust both height and span to suit different working conditions.
The standard lifting capacity ranges from 0.5 tons to 10 tons, with custom designs available for applications ranging from light-duty to heavy-duty.
Yes, it can be used outdoors. For outdoor applications, weatherproof coatings, galvanized components, and other protective measures are available.
Several hoist types are available, including manual chain hoists, electric chain hoists, and wire rope hoists. The most suitable choice depends on lifting capacity, lifting height, and operating frequency.
Lifting capacity, span, adjustable height range, hoist type, wheel type, voltage, and other parameters can all be customized. Contact us for more detailed information.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
