AGV Transfer Cart
Automated Material Handling Solution for Smart Factories
30+ Years Manufacturing Experience
Exported to 130+ Countries
Custom Design Within 24 Hours

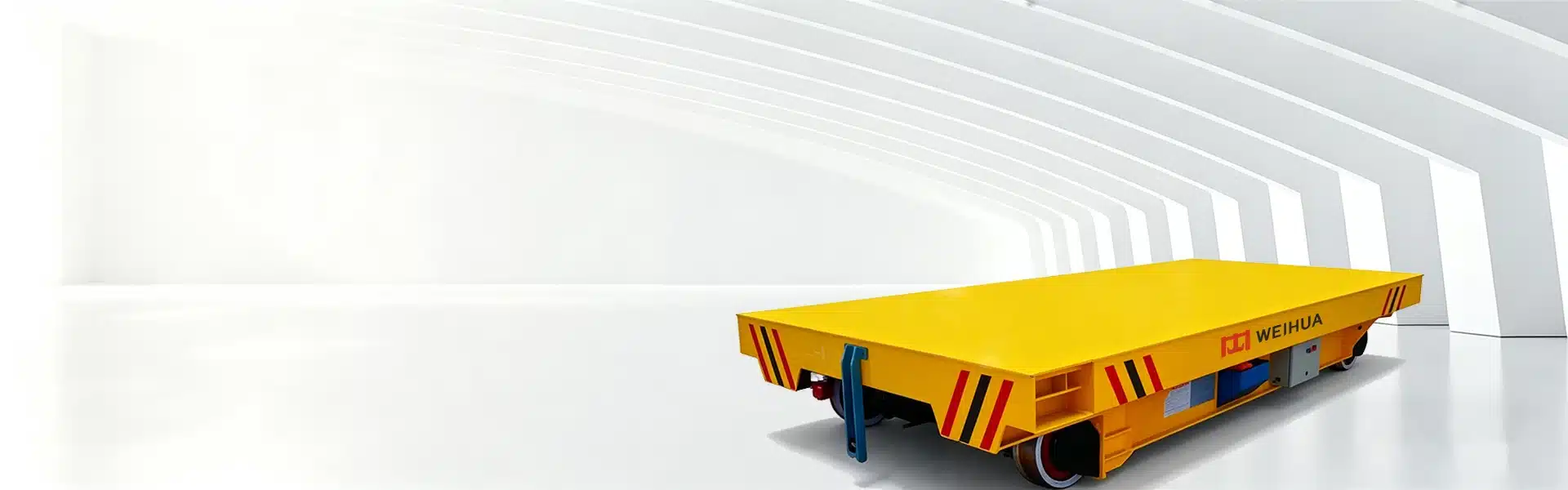

Electric Transfer Cart
AGV Transfer Cart
AGV transfer cart (Automated Guided Vehicle) is designed for automatic material transportation within factories, warehouses, and production lines. It follows predefined paths using navigation technologies such as magnetic tape, QR code, or laser guidance.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
Weihua Crane AGV transfer carts are widely used in modern manufacturing environments where efficiency, accuracy, and reduced manual handling are required. The system can operate independently or be integrated into existing production lines and warehouse systems.
With flexible routing and intelligent control, AGV carts help improve workflow and reduce labor costs.
Key Features
01
Automated Operation
Follows programmed routes without manual driving.
02
Flexible Navigation Options
Magnetic, QR code, or laser navigation available.
03
Stable and Safe Movement
Equipped with obstacle detection and safety protection systems.
04
High Efficiency
Improves material flow and reduces manual handling.
05
Customizable Design
Load capacity, size, and functions can be tailored to application needs.
Typical Applications
AGV transfer carts are commonly used in:
-
Port Crane SolutionsThe volume of containers, bulk cargo, and general cargo handled by modern ports continues to increase every year. Efficient port crane systems help ports improve cargo turnover, shorten vessel turnaround times, and maintain smooth logistics operations.
-
Overhead Crane SolutionsThe overhead crane is an indispensable piece of heavy duty material handling equipment in modern industry. It is composed of parallel fixed tracks above the factory building, the main beams (single or double) that span across, the trolley that can move along the main beam, and the lifting mechanism. The overhead crane can efficiently achieve the lifting and horizontal movement of heavy objects in the factory or specific working areas.
-
Port & Shipyard Lifting SolutionsPort terminals and shipyards operate in demanding environments where lifting equipment must handle large loads, long shifts, and harsh conditions.
-
Manufacturing Industry Lifting SolutionsManufacturing environments rely on consistent and efficient material handling to keep production lines running smoothly.
They are ideal for repetitive and long-distance material transport.
Technical Specifications
The following specifications are for standard reference. Weihua Crane can provide customized solutions based on actual project requirements.
| Model | Capacity (Ton) | Platform Size (mm) | Running Speed (m/min) | Navigation Type | Power Supply | Control System |
| AGV-10 | 1 | 1200 × 800 | 20 – 40 | Magnetic | Battery | PLC Control |
| AGV-20 | 2 | 1500 × 1000 | 20 – 50 | Magnetic / QR | Battery | PLC Control |
| AGV-30 | 3 | 1800 × 1200 | 20 – 60 | QR / Laser | Battery | PLC + Remote |
| AGV-50 | 5 | 2000 × 1500 | 30 – 60 | QR / Laser | Battery | PLC + Remote |
| AGV-80 | 8 | 2200 × 1600 | 30 – 70 | Laser | Battery | PLC + Remote |
| AGV-100 | 10 | 2500 × 1800 | 30 – 70 | Laser | Battery | PLC + Remote |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.
Customization Options
Weihua Crane offers flexible AGV solutions based on your operational requirements:
Different navigation systems (magnetic, QR code, laser)
Customized load capacity and platform size
Automatic charging system
Integration with warehouse management system (WMS)
Multi-vehicle coordination and dispatch system
Our engineering team will design a suitable AGV system based on your workflow and layout.
Why Choose Weihua Crane
Weihua combines lifting equipment experience with intelligent handling solutions. Our AGV transfer carts are designed for reliability and long-term operation.
Stable and efficient performance
Flexible system integration capability
Custom solutions for different industries
Support for smart factory applications
Frequently Asked Questions
Need Help Choosing the Right AGV Transfer Cart?
AGV selection depends on your factory layout, transport route, and automation level.
Here are some common questions to help you better understand the system.
If you need further assistance, our team is ready to support you.
It is used for automated material transport within factories, reducing manual handling and improving efficiency.
Common options include magnetic guidance, QR code navigation, and laser navigation depending on accuracy requirements.
It can be designed from 1 ton up to 100 tons or more based on application.
Yes, multiple AGVs can be controlled through a central system for coordinated operation.
Please provide load capacity, travel path, working environment, and automation requirements for accurate design.
Get a Quote
To provide a suitable solution, please share:
- Load capacity
- Transport path and distance
- Workshop layout or drawings
- Automation requirements
We will respond within 24 hours with a practical recommendation.
