KBK Light Crane
Flexible Modular Lifting Solution by Weihua Crane
30+ Years Manufacturing Experience
Exported to 130+ Countries
Custom Design Within 24 Hours
KBK Crane
KBK Light Crane
The KBK Light Crane System is a modular material handling solution designed for flexible and efficient lifting in modern workshops. Built with standardized components, it can be easily configured to match different layouts and production processes.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
Unlike traditional crane systems, KBK cranes are lightweight, adaptable, and easy to install. They are ideal for workstations, assembly lines, and production areas where precision handling and smooth operation are required.
Weihua Crane provides reliable KBK systems that improve workflow efficiency while reducing manual handling and operational strain.
Key Features
The KBK light crane system is designed for flexibility and ease of use:
01
Modular design for quick assembly and reconfiguration
02
Lightweight structure with smooth manual operation
03
Flexible track layouts (straight, curved, or loop systems)
04
Easy expansion or modification as production changes
05
Low noise and minimal maintenance requirements
06
Suitable for single workstation or multi-station systems
07
Can be integrated with electric hoists or manual trolleys
Typical Applications
KBK light crane systems are widely used in industries requiring flexible material handling:
-
KBK Crane SystemsLifting SolutionsKBK crane systems provide a flexible and efficient lifting solution for modern manufacturing facilities. With their modular suspended design, these cranes help move materials safely and accurately while maximizing available workspace.
-
Paper & Pulp Industry Lifting SolutionsPulp and paper mills run around the clock, where materials are constantly moving between processing stages.
-
Crane Parts SolutionsOnce a crane is put into production use, its performance is evaluated not only by the overall machine quality, but also by the compatibility of each component with the complete system. Whether it is the hook, drum, or grab, all these crane parts directly affect lifting efficiency, operator safety, and subsequent maintenance costs.
-
Manufacturing Industry Lifting SolutionsManufacturing environments rely on consistent and efficient material handling to keep production lines running smoothly.
They are particularly effective in improving efficiency and reducing manual handling in repetitive operations.
Technical Specifications
| Item | Specification | Unit | Description | Options | Remark |
| Lifting Capacity | 0.125 – 2 | ton | Standard range | Custom available | Light-duty applications |
| Span | 2 – 9 | m | Bridge span | Adjustable | Based on layout |
| Track Length | Custom | m | System length | Flexible | Modular design |
| Lifting Height | 2 – 10 | m | Working height | Adjustable | Site-dependent |
| Operation Mode | Manual / Electric | — | Standard/manual | Motorized optional | Flexible use |
| Travel Speed | Manual / 5–20 | m/min | Trolley movement | Optional | Smooth handling |
| Power Supply | 220 – 480 | V | 3-phase | 50/60Hz | If motorized |
| Installation Type | Ceiling / Steel Structure | — | Suspended system | Custom design | Space-saving |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.

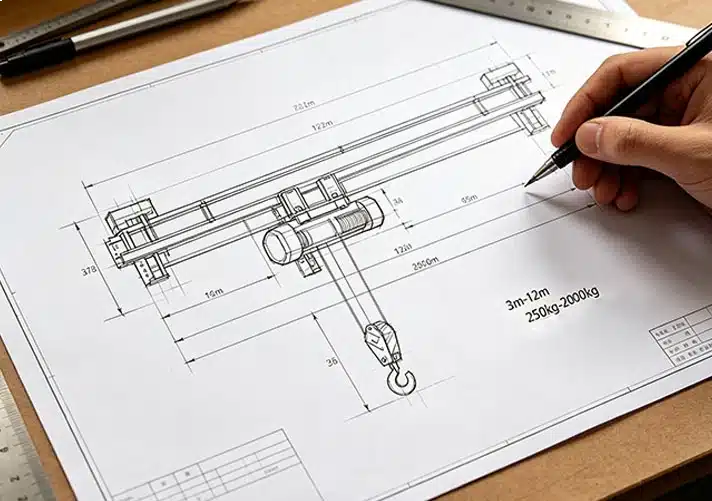

Modular Customization for Your Workflow
One of the biggest advantages of a KBK system is its flexibility. Every production line is different, and a fixed crane solution often cannot adapt to changing requirements.
Weihua Crane offers fully customized KBK light crane systems designed around your workflow:
Custom track layouts (straight, curved, circular, or combined systems)
Single girder, double girder, or monorail configurations
Multi-station systems for continuous production lines
Integration with lifting devices such as electric chain hoists
Adjustable span and suspension height based on building structure
Expansion-ready design for future production upgrades
Solutions for clean rooms, precision assembly, or special environments
Our engineers can design a system based on your workshop layout to ensure smooth material flow and improved productivity.
Why Choose Weihua Crane
Weihua Crane combines modular design with practical engineering experience:
Strong capability in customized system design
Reliable components for long-term operation
Easy installation with minimal structural changes
Flexible expansion for future production needs
Responsive technical support and global service
We focus on providing lifting systems that adapt to your workflow, not restrict it.
Frequently Asked Questions
A KBK system is a modular, lightweight crane system designed for flexible material handling in workshops and production lines.
Yes, the system can be fully customized, including track layout, span, height, and configuration based on your workspace.
Yes, thanks to its modular design, the KBK system can be easily expanded or reconfigured as your production needs change.
Yes, the system can be equipped with electric chain hoists or manual hoists depending on your operational needs.
Yes, Weihua Crane provides technical guidance, installation support, and after-sales service for global customers.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
