KBK CRANES
WEIHUA LIFTING EQUIPMENT
Lightweight & Flexible Lifting Systems | Modular Design for Every Workstation
KBK Crane Quick Overview
- Capacity: 0.1T – 3T
- Span: Flexible modular system
- Track Type: Single / Double beam
- Installation: Suspended
KBK Crane We Supply
-

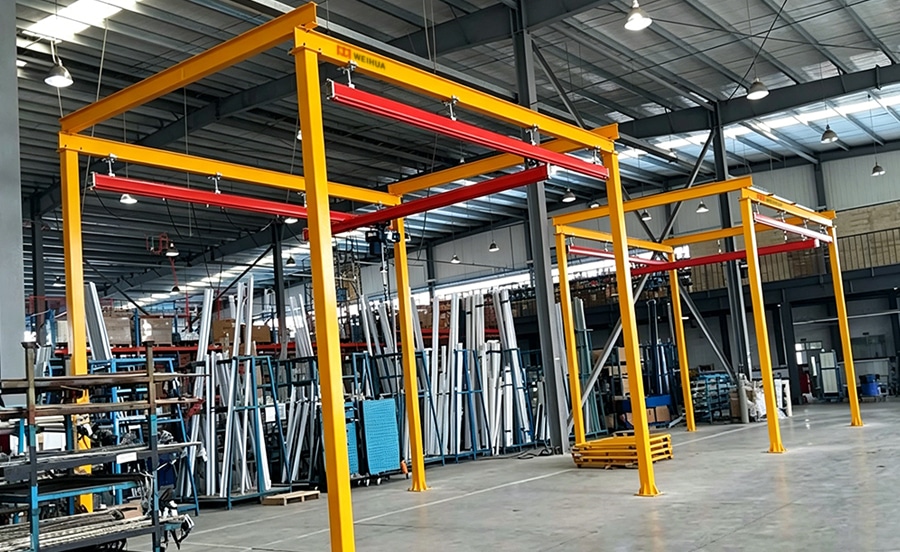

European KBK Crane
European KBK Crane
- Capacity: up to 2t (Customizable)
- Span Length: up to 10m (Customizable)
- Applications: assembly lines, etc.
-

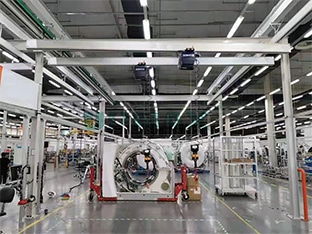

Electric KBK Crane
Electric KBK Crane
- Capacity: up to 2t (Customizable)
- Span Length: up to 9m (Customizable)
- Applications: production environments
-

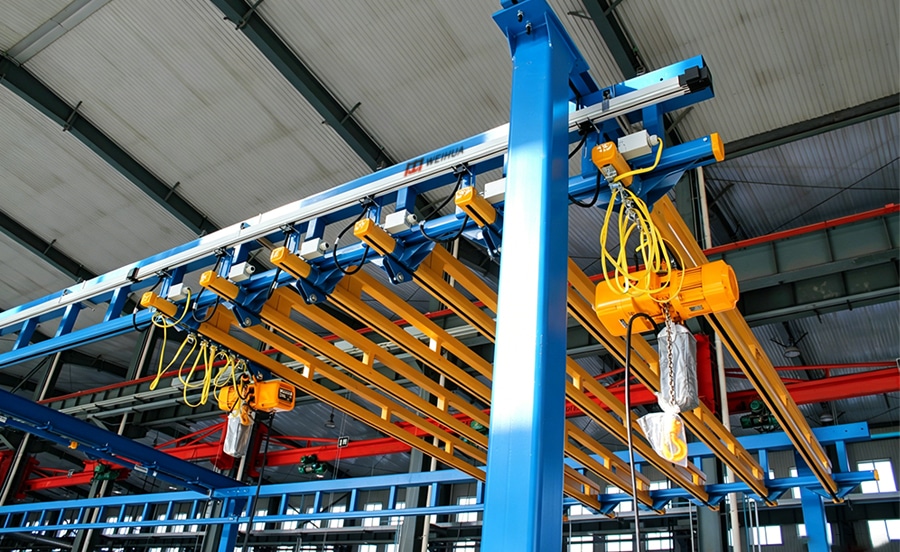

KBK Light Crane
KBK Light Crane
- Capacity: up to 2t (Customizable)
- Span Length: up to 9m (Customizable)
- Applications: production areas
-

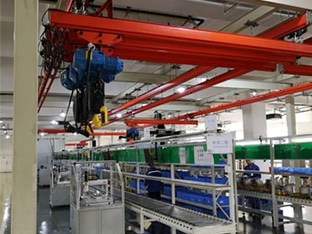

KBK Crane System
KBK Crane System
- Capacity: up to 10t (Customizable)
- Span Length: up to 16m (Customizable)
- Applications: assembly lines, warehouses, etc.
KBK Crane System:
Specifications & Technical Parameters
| Item | Specification |
| Lifting Capacity | 0.1 Ton – 3 Ton |
| Span | 2m – 12m |
| Track Length | Up to 100m (modular extension available) |
| Lifting Height | 2m – 10m (customizable) |
| Crane Type | Single Beam / Double Beam KBK System |
| Track Type | Rigid Track / Flexible Track |
| Track Material | Cold-rolled steel / Aluminum alloy (optional) |
| Working Class | A3 – A5 (ISO / FEM Standard) |
| Lifting Speed | 0.8 – 6.3 m/min |
| Trolley Traveling Speed | 2 – 20 m/min |
| Crane Traveling Speed | 5 – 40 m/min |
| Power Supply | 220V – 480V / 50Hz / 60Hz (customizable) |
| Control Method | Pendant Control / Remote Control |
| Hoist Type | Electric Chain Hoist |
| Installation Type | Ceiling Mounted / Suspension / Free-standing Support |
| Min. Turning Radius | ≥1.5m (for flexible track system) |
| Connection Type | Bolt connection (modular assembly) |
| Motor Protection Class | IP54 / IP55 |
| Insulation Class | F |
| Working Temperature | -20°C ~ +50°C |
All specifications can be customized based on your project requirements.
Flexible KBK crane systems for efficient workshop lifting
We design and supply KBK crane systems that provide flexible, efficient, and safe material handling solutions for modern workshops and production lines.
From single rail systems to complex multi-span configurations, our KBK solutions are engineered to improve workflow efficiency and reduce manual handling risks.
All systems are customized based on your workshop layout and lifting requirements.
Modular KBK crane system design for flexible expansion
Smooth and precise material handling for workshop efficiency
Suitable for assembly lines, warehouses, and production areas
Lightweight structure with high load-bearing performance
Customized layout based on factory drawings or site conditions
Easy installation, low maintenance, long service life
Optional Configurations
- Aluminum alloy track system (lightweight & low noise)
- Variable Frequency Drive (VFD)
- Anti-sway system
- Curved track design for complex layouts
- Telescopic beam system
- Integrated workstation lifting solutions
Applications & Advantages
- Modular system for flexible configurations
- Lightweight structure with smooth movement
- Easy expansion for future production needs
- Efficient material handling for light loads
- Widely used in modern assembly lines
Automobile Manufacturing Assembly Line

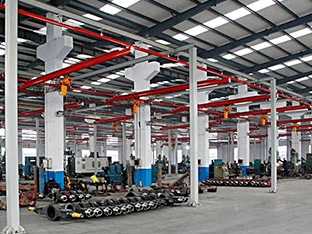

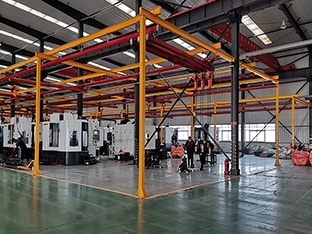

Machinery Shop
Precision Electronic Assembly
Warehousing and Logistics Center
New Energy / High-End Equipment Manufacturing
Project Experience

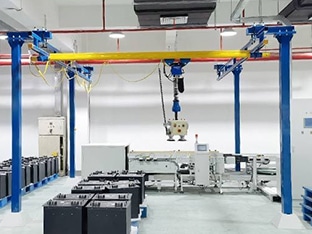

KBK Modular Crane – Malaysia
- Project Location: Penang, Malaysia
- Industry: New Energy Battery Manufacturing
- Equipment Supplied: Weihua KBK-I 0.5 Ton Modular Crane System
- Application: Precision Material Handling for Battery Component Production Lines
KBK Flexible Crane – Kazakhstan
- Project Location: Almaty, Kazakhstan
- Industry: Heavy Machinery Manufacturing
- Equipment Supplied: Weihua KBK-II 1 Ton Flexible Crane System
- Application: Multi-Station Assembly Line Material Handling
Why Choose Weihua Crane
38 years of manufacturing experience
Exported to 130+ countries
Strong engineering support
ISO & CE certified
Reliable after-sales service
Frequently Asked Questions
Still have questions? Talk to your engineer for a quick solution.
A KBK crane is a modular light crane system designed for flexible material handling. It is commonly used in workshops, assembly lines, and warehouses.
KBK systems are lightweight, easy to install, and highly flexible. They can be expanded or modified later without major structural changes.
Most KBK crane systems are designed for loads up to 2 tons, making them ideal for light-duty and repetitive lifting tasks.
Yes, KBK systems are modular, so they can be designed to fit different workshop layouts, including straight tracks, curves, or multi-span systems.
KBK cranes are typically equipped with electric chain hoists for smooth and precise lifting.
No, installation is relatively simple compared to traditional cranes. Most systems can be installed quickly with standard tools and basic guidance.
