Wall-Mounted Jib Crane
Wall mounted jib crane is designed for localized lifting operations where materials need to be handled within a specific working area. It is installed on a wall or building column, without occupying floor space, making it suitable for workshops with limited space.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
Weihua Crane wall mounted jib cranes are widely used in production lines, assembly stations, and maintenance areas. The crane can rotate along the wall, allowing flexible coverage of the working zone while improving efficiency in material handling.
It is often used together with electric chain hoists or wire rope hoists to complete light to medium lifting tasks.
Key Features
The explosion proof hoist is built to meet the safety requirements of hazardous locations:
01
Space-Saving Installation
Mounted on wall or column, no floor space required.
02
Flexible Rotation
Allows smooth rotation to cover a defined working area.
03
Easy Operation
Simple structure and convenient control for daily use.
04
Cost-Effective Solution
Ideal for workstation lifting without installing large crane systems.
05
Flexible Hoist Options
Compatible with electric chain hoists or wire rope hoists.
Typical Applications
Wall mounted jib cranes are commonly used in:
-
KBK Crane SystemsLifting SolutionsKBK crane systems provide a flexible and efficient lifting solution for modern manufacturing facilities. With their modular suspended design, these cranes help move materials safely and accurately while maximizing available workspace.
-
Crane Parts SolutionsOnce a crane is put into production use, its performance is evaluated not only by the overall machine quality, but also by the compatibility of each component with the complete system. Whether it is the hook, drum, or grab, all these crane parts directly affect lifting efficiency, operator safety, and subsequent maintenance costs.
-
Electric Hoist Lifting SolutionsAn electric hoist is a mobile lifting device widely used in industrial production and material handling. It effectively reduces manual labor while enhancing workplace safety and efficiency, making it the top choice for many companies.
-
Paper & Pulp Industry Lifting SolutionsPulp and paper mills run around the clock, where materials are constantly moving between processing stages.
They are ideal for repetitive lifting tasks within a fixed area.
Technical Specifications
The following specifications are for standard reference. Weihua Crane can provide customized solutions based on actual requirements.
| Model | Capacity (Ton) | Arm Length (m) | Lifting Height (m) | Rotation Angle (°) | Lifting Speed (m/min) | Control Mode |
| WBJ-05 | 0.5 | 2 – 4 | 2 – 4 | 180 / 270 | 8 / 0.8 | Pendant |
| WBJ-10 | 1 | 3 – 5 | 2 – 5 | 180 / 270 | 8 / 0.8 | Pendant / Remote |
| WBJ-20 | 2 | 3 – 6 | 3 – 6 | 180 / 270 | 8 / 0.8 | Pendant / Remote |
| WBJ-30 | 3 | 4 – 6 | 3 – 6 | 180 / 270 | 7 / 0.7 | Remote |
| WBJ-50 | 5 | 4 – 7 | 4 – 8 | 180 | 7 / 0.7 | Remote |
| WBJ-100 | 10 | 5 – 8 | 4 – 10 | 180 | 3.5 / 0.35 | Remote |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.

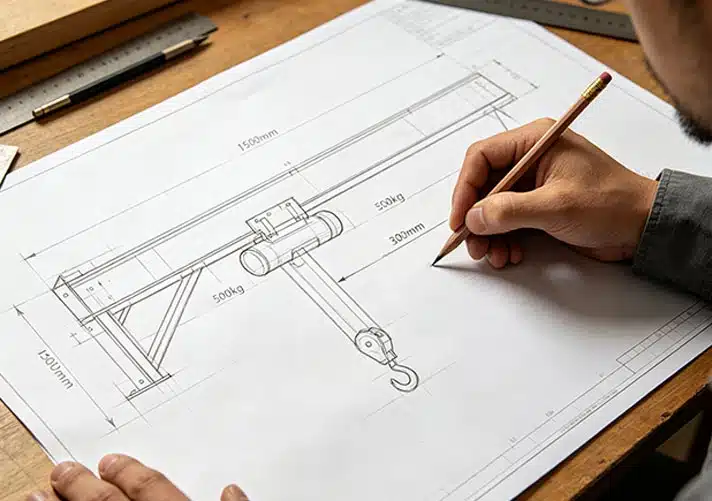

Customization Options
Weihua Crane can provide customized configurations to match your working conditions:
Adjustable arm length and lifting height
Manual or motorized rotation
Different hoist configurations
Indoor or outdoor application
Power supply options (220V / 380V / 415V)
Our engineers will recommend a suitable solution based on your application.
Why Choose Weihua Crane?
Weihua has extensive experience in lifting equipment manufacturing and application design. Our jib cranes are built for practical use and long-term reliability.
Simple and reliable structure
Stable performance in daily operation
Flexible customization capability
Support for international projects
We focus on delivering solutions that meet both safety standards and operational efficiency.
Frequently Asked Questions
Need Help Choosing the Right Wall Mounted Jib Crane?
Selecting the right jib crane depends on your workspace layout and lifting needs.
Here are some common questions to help you better understand this product.
If you need further assistance, our team is ready to support you.
It can be installed on a strong wall or column that can support the load and operating forces.
Common rotation angles are 180° or 270°, depending on installation conditions.
It typically ranges from 0.5 ton to 10 tons depending on design.
It can be equipped with electric chain hoist or wire rope hoist based on requirements.
Yes, Weihua Crane can adjust arm length, height, and configuration based on your working conditions.
Get a Quote
To provide a suitable solution, please share:
- Lifting capacity
- Arm length
- Lifting height
- Installation conditions
We will respond within 24 hours with a practical recommendation.
