Semi Gantry Crane
Space-Saving Lifting Solution for Workshops and Open Areas
30+ Years Manufacturing Experience
Exported to 130+ Countries
Custom Design Within 24 Hours
Gantry Crane
Semi-Gantry Crane
Semi gantry crane is a practical lifting solution that combines the advantages of overhead cranes and gantry cranes. One side of the crane travels on the ground rail, while the other side runs on an elevated runway beam supported by the building structure.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
Weihua Crane semi gantry cranes are widely used in workshops, warehouses, and outdoor areas where full gantry crane installation is not necessary or space is limited. This design helps reduce construction cost while maintaining stable lifting performance.
It is especially suitable for applications where part of the workshop already has supporting structure, allowing efficient use of existing facilities.
Key Features
01
Space-Saving Design
One-leg structure reduces floor space occupation and improves workshop layout efficiency.
02
Lower Investment Cost
Compared with full gantry cranes, it requires less steel structure and civil work.
03
Stable Operation
Dual traveling system ensures smooth and safe movement.
04
Flexible Application
Suitable for both indoor and semi-outdoor environments.
05
Wide Capacity Range
Can be designed for light to heavy duty applications.
Typical Applications
Semi gantry cranes are commonly used in:
-
Energy & Power Plant Lifting SolutionsPower plants and energy facilities require lifting equipment that can handle critical components with care and stability.
-
Engineering Crane Lifting SolutionsEngineering projects require flexible and dependable lifting systems that can adapt to changing site conditions and complex structures.
-
KBK Crane SystemsLifting SolutionsKBK crane systems provide a flexible and efficient lifting solution for modern manufacturing facilities. With their modular suspended design, these cranes help move materials safely and accurately while maximizing available workspace.
-
Jib Crane Lifting SolutionsA jib crane is a type of lifting equipment. Its horizontal boom is connected to a vertical support and can rotate at multiple angles, enabling radial lifting movement within a fixed working area.
It is an ideal solution when overhead crane installation is not fully feasible.
Technical Specifications
The following specifications are for standard reference. Weihua Crane can provide customized solutions based on actual project requirements.
| Model | Capacity (Ton) | Span (m) | Lifting Height (m) | Hoisting Speed (m/min) | Trolley Speed (m/min) | Crane Speed (m/min) |
| SMG-50 | 5 | 10 – 20 | 6 – 12 | 5 / 0.8 | 20 – 30 | 20 – 40 |
| SMG-100 | 10 | 10 – 25 | 6 – 12 | 5 / 0.8 | 20 – 30 | 20 – 40 |
| SMG-200 | 20 | 12 – 30 | 8 – 16 | 4 / 0.8 | 20 – 35 | 25 – 45 |
| SMG-320 | 32 | 15 – 35 | 10 – 18 | 3.5 / 0.7 | 25 – 35 | 30 – 50 |
| SMG-500 | 50 | 18 – 40 | 10 – 20 | 3.5 / 0.7 | 25 – 40 | 30 – 50 |
| SMG-800 | 80 | 20 – 45 | 12 – 22 | 3 / 0.6 | 30 – 40 | 35 – 60 |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.

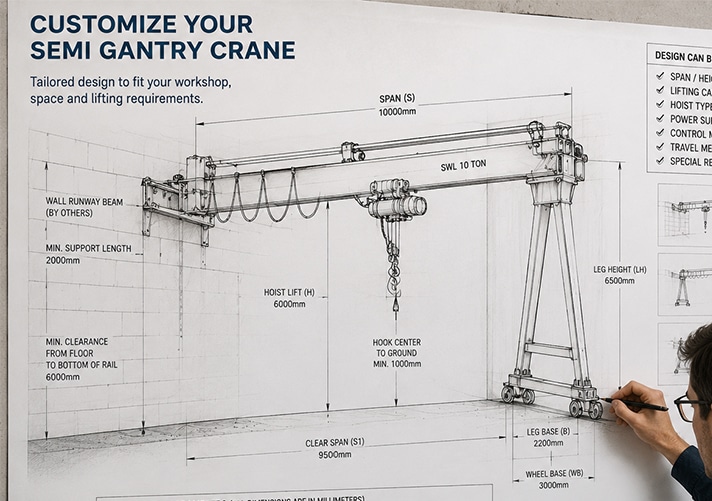

Customization Options
Weihua Crane provides flexible configurations to meet different working conditions:
Customized lifting capacity and span
Indoor or outdoor design adaptation
Single girder or double girder option
Different control methods (cabin / remote / pendant)
Anti-corrosion and weather-resistant design
Our engineering team will recommend the most suitable solution based on your project.
Why Choose Weihua Crane
With extensive experience in crane manufacturing, Weihua provides reliable and practical lifting solutions for global customers.
Our strengths include:
Proven design for industrial applications
Stable performance and long service life
Flexible customization capability
Professional support for overseas projects
Frequently Asked
Questions
Here are quick answers to the most common questions from our clients. Want more answers ask us or explore more!
It is mainly used in workshops or yards where part of the structure can support a runway beam, reducing the need for a full gantry system.
A semi gantry crane has one leg on the ground and one side supported by a building structure, while a full gantry crane has two legs running on ground rails.
Yes, it can be used outdoors with proper design considerations such as wind resistance and anti-corrosion treatment.
It can be designed from light duty to heavy duty, typically ranging from 5 tons up to 80 tons or more depending on requirements.
You need to provide lifting capacity, span, lifting height, installation environment, and power supply. Based on this, we can recommend a suitable model.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
