Container Gantry Crane
Efficient Container Handling Solution for Ports and Yards
30+ Years Manufacturing Experience
Exported to 130+ Countries
Custom Design Within 24 Hours
Port Crane

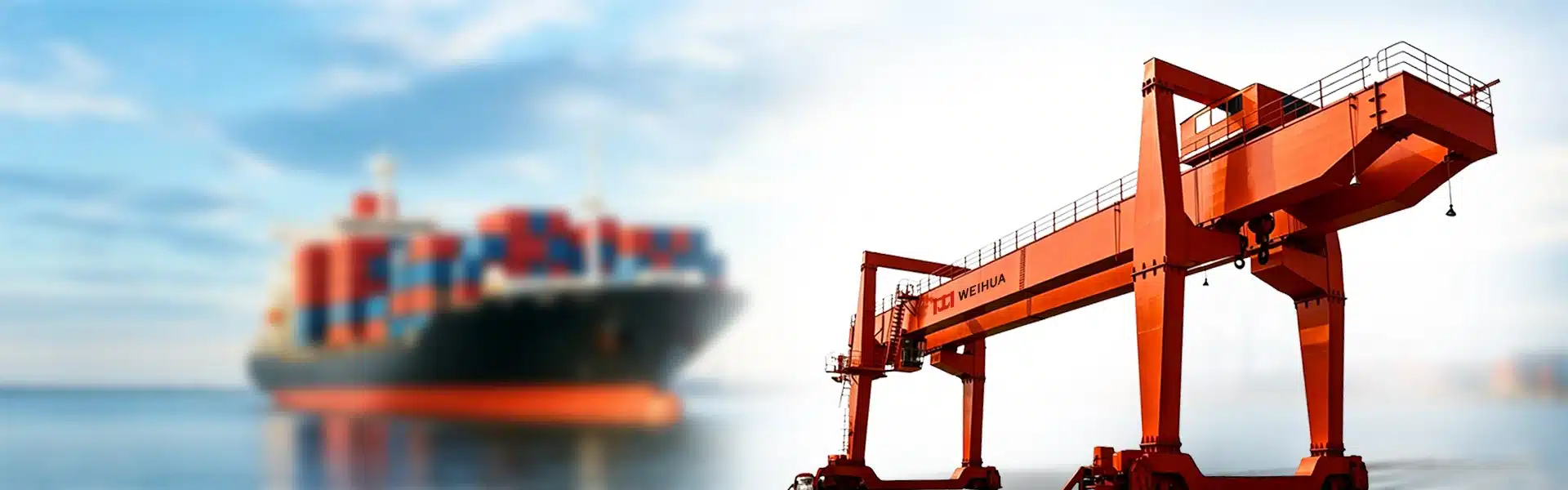

Container Gantry Crane
Container gantry crane is designed for efficient handling of containers in ports, rail yards, and logistics terminals. It is widely used for stacking, loading, and transferring standard containers in high-volume operations.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
Weihua Crane container gantry cranes are engineered for stable performance, precise positioning, and continuous operation. Depending on site requirements, the crane can be configured as rubber tyred gantry crane (RTG) or rail mounted gantry crane (RMG), offering flexibility for different yard layouts.
With a robust structure and reliable control system, it helps improve yard efficiency and reduce operational time.
Key Features
The European KBK crane system is designed to deliver smooth and efficient material handling:
01
Designed for Container Handling
Suitable for standard 20ft, 40ft, and 45ft containers.
02
High Efficiency Operation
Optimized for stacking and transferring containers quickly.
03
Stable and Precise Control
Ensures accurate positioning during lifting and traveling.
04
Adaptable to Different Yard Layouts
Available in RTG and RMG configurations.
05
Reliable Performance
Built for continuous operation in demanding environments.
Typical Applications
Container gantry cranes are widely used in:
-
Paper & Pulp Industry Lifting SolutionsPulp and paper mills run around the clock, where materials are constantly moving between processing stages.
-
Port Crane SolutionsThe volume of containers, bulk cargo, and general cargo handled by modern ports continues to increase every year. Efficient port crane systems help ports improve cargo turnover, shorten vessel turnaround times, and maintain smooth logistics operations.
-
Engineering Crane Lifting SolutionsEngineering projects require flexible and dependable lifting systems that can adapt to changing site conditions and complex structures.
-
Warehouse & Logistics Lifting SolutionsIn warehouse and logistics operations, speed and accuracy matter just as much as safety.
They are essential for modern container handling operations.
Technical Specifications
The following specifications are for standard reference. Weihua Crane provides customized solutions based on actual project requirements.
| Model | Capacity (Ton) | Span (m) | Lifting Height (m) | Hoisting Speed (m/min) | Trolley Speed (m/min) | Crane Speed (m/min) | Crane Type |
| CG-300 | 30 | 20 – 30 | 12 – 18 | 12 / 1.2 | 60 – 70 | 30 – 90 | RTG |
| CG-400 | 40 | 25 – 35 | 15 – 20 | 10 / 1 | 60 – 80 | 40 – 100 | RTG |
| CG-500 | 50 | 30 – 40 | 18 – 25 | 8 / 0.8 | 70 – 90 | 50 – 120 | RTG |
| CG-600 | 60 | 30 – 45 | 18 – 30 | 8 / 0.8 | 70 – 100 | 50 – 120 | RMG |
| CG-800 | 80 | 35 – 50 | 20 – 35 | 7 / 0.7 | 80 – 110 | 60 – 130 | RMG |
| CG-1000 | 100 | 40 – 60 | 25 – 40 | 6 / 0.6 | 90 – 120 | 70 – 140 | RMG |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.

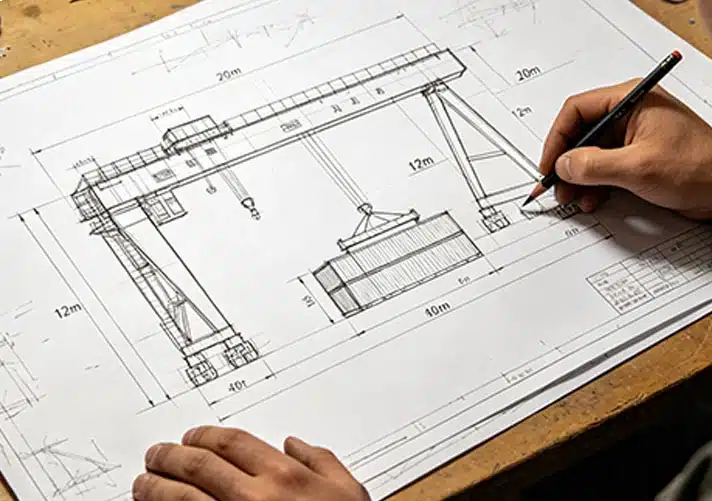

Customization Options
Weihua Crane provides tailored container handling solutions based on project needs:
RTG or RMG configuration
Single spreader or double spreader design
Anti-sway system for precise positioning
Remote control or cabin control
Automation and intelligent control system
Adaptation to different yard layouts
Our engineering team will design a suitable solution based on your operational requirements.
Why Choose Weihua Crane
Weihua has strong experience in port and container handling equipment. Our container gantry cranes are designed for efficiency, durability, and long-term operation.
Proven performance in container handling projects
Stable operation under continuous workload
Flexible customization capability
Support for international port and logistics projects
Frequently Asked Questions
Need Help Choosing the Right Container Gantry Crane?
Selecting the right crane depends on your yard layout, container volume, and operation method.
Here are some common questions to help you better understand the equipment.
If you need further assistance, our team is ready to support your project.
RTG cranes use rubber tyres and can move flexibly, while RMG cranes run on rails and are more suitable for fixed yard layouts.
It is designed for standard containers such as 20ft, 40ft, and 45ft.
Yes, automation and intelligent control systems can be integrated based on project requirements.
It typically ranges from 30 tons to over 100 tons depending on design.
Please provide container type, yard layout, lifting capacity, and operational requirements for accurate design.
Get a Quote
To provide a suitable solution, please share:
- Container type and handling method
- Required lifting capacity
- Yard layout and span requirements
- Working environment
We will respond within 24 hours with a professional proposal.
