Double Girder Gantry Crane
Heavy-Duty Outdoor Lifting for Yards, Ports & Industrial Sites
30+ Years Manufacturing Experience
Exported to 130+ Countries
Custom Design Within 24 Hours
Gantry Crane
Double-Girder Gantry Crane
When single-girder cranes fall short, the Double Girder Gantry Crane steps in. Built for continuous heavy lifting, this system delivers higher hook clearance, greater load stability, and precise control in demanding outdoor environments.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Specifications

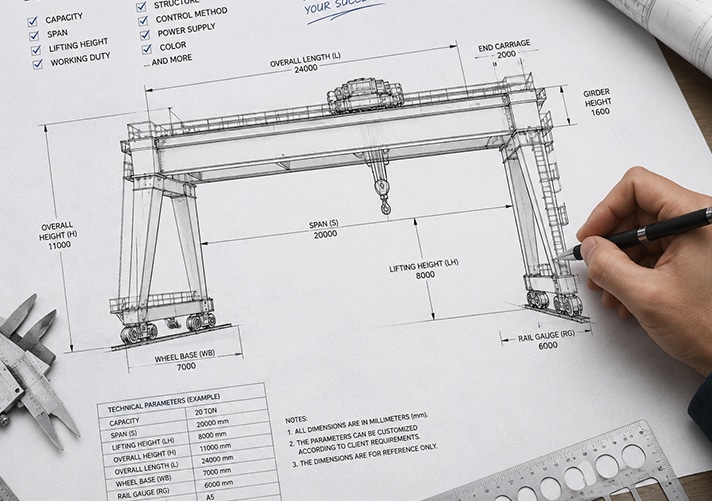

- Design
- Why-Us
- Faq
Products Overview
When single-girder cranes fall short, the Double Girder Gantry Crane steps in. Built for continuous heavy lifting, this system delivers higher hook clearance, greater load stability, and precise control in demanding outdoor environments. Designed for fabrication yards, container handling, steel service centers, and construction sites, it handles uneven loads and long spans without compromising safety or uptime.
Why Operations Choose This Crane
01
Higher Capacity & Extended Hook Travel
Lifts from 10 to 500 tons with optimized trolley positioning for deeper or taller work zones.
02
Reduced Deflection & Smoother Operation
Dual main girders distribute weight evenly, minimizing beam sag and improving load control during frequent cycles.
03
Built for Outdoor & Harsh Conditions
IP55+ rated electrical components, anti-corrosion coatings, and optional weather shields for rain, dust, and temperature extremes.
04
Operator Flexibility
Choose pendant control, wireless remote, or enclosed cabin based on site layout and safety requirements.
05
Low Maintenance, High Availability
Standardized hoist and drive units with globally sourced spare parts. No proprietary bottlenecks.
Not sure which model fits your project? Contact our engineers for selection support.
Typical Applications
Double girder gantry cranes are widely used in:
-
Port Crane SolutionsThe volume of containers, bulk cargo, and general cargo handled by modern ports continues to increase every year. Efficient port crane systems help ports improve cargo turnover, shorten vessel turnaround times, and maintain smooth logistics operations.
-
Overhead Crane SolutionsThe overhead crane is an indispensable piece of heavy duty material handling equipment in modern industry. It is composed of parallel fixed tracks above the factory building, the main beams (single or double) that span across, the trolley that can move along the main beam, and the lifting mechanism. The overhead crane can efficiently achieve the lifting and horizontal movement of heavy objects in the factory or specific working areas.
-
Electric Hoist Lifting SolutionsAn electric hoist is a mobile lifting device widely used in industrial production and material handling. It effectively reduces manual labor while enhancing workplace safety and efficiency, making it the top choice for many companies.
-
Gantry Crane SolutionsThe gantry crane is suitable for outdoor material handling. The gantry structure enables it to serve storage areas, production zones, and construction sites without relying on building structures. In addition, it offers stable lifting and accurate load positioning, which helps enhance material handling efficiency.
Technical Specifications
| Model | Capacity (Ton) | Span (m) | Lifting Height (m) | Hoisting Speed (m/min) | Trolley Speed (m/min) | Crane Speed (m/min) | Working Duty |
| MG-50 | 5 | 10 – 20 | 6 – 12 | 5 / 0.8 | 20 – 30 | 20 – 40 | A5 |
| MG-100 | 10 | 10 – 25 | 6 – 12 | 5 / 0.8 | 20 – 30 | 20 – 40 | A5 |
| MG-200 | 20 | 12 – 30 | 8 – 16 | 4 / 0.8 | 20 – 35 | 25 – 45 | A6 |
| MG-320 | 32 | 15 – 35 | 10 – 18 | 3.5 / 0.7 | 25 – 35 | 30 – 50 | A6 |
| MG-500 | 50 | 18 – 40 | 10 – 20 | 3.5 / 0.7 | 25 – 40 | 30 – 50 | A6 |
| MG-800 | 80 | 20 – 45 | 12 – 22 | 3 / 0.6 | 30 – 40 | 35 – 60 | A7 |
| MG-1000 | 100 | 25 – 50 | 12 – 24 | 3 / 0.6 | 30 – 45 | 40 – 60 | A7 |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.
Optional Configuration
Power Supply: 220V / 380V / 415V / 440V
Control Mode: Cabin Control / Remote Control / Pendant
Girder Type: Box Girder / Truss Girder
Working Environment: Outdoor / Windproof / Rainproof / Anti-corrosion
Our engineering team ensures every crane fits your exact lifting needs.
Backed by Weihua Group Engineered and manufactured by Weihua Group, a global lifting equipment supplier with over 30 years of field-tested designs. Every crane undergoes static and dynamic load testing, electrical safety verification, and full documentation review before shipment. We provide layout approval, installation supervision, and commissioning support. With units operating in 80+ countries, Weihua cranes are built to meet international safety standards and your exact site requirements.
Configure Your Crane for Your Site Double girder gantry cranes are configured to your site conditions. Share your span, lifting height, duty cycle, and environmental constraints, and our engineering team will return a compliant, cost-optimized proposal within 24 hours.
Why Choose Weihua Group ?
As one of the leading crane manufacturers in China, Weihua Group has built a strong global reputation in material handling equipment.
Our strengths include:
Over 30 years of manufacturing experience
Exported to 130+ countries
Advanced production facilities and strict quality control
Certified with ISO, CE, SGS standards
Strong engineering and customization capability
We don’t just supply cranes — we deliver complete lifting solutions.
Have Questions About Double Girder Gantry Cranes?
Choosing the right gantry crane is not always straightforward. Load capacity, span, working environment, and installation conditions all matter.
If you’re not sure which model fits your project, just send us a few basic details — our team will help you find a suitable solution quickly.
Most models can handle anywhere from 10 tons up to several hundred tons. The exact capacity depends on the design, span, and working conditions. We usually recommend confirming your load details before selecting a model.
Yes, it can. For outdoor use, factors like wind resistance, rain protection, and temperature are all considered. We can adjust the structure and electrical components to match your site conditions.
Double girder gantry cranes typically run on ground rails. The foundation needs to be level and strong enough to support the load. We can provide rail layout drawings and basic foundation suggestions if needed.
There are several options, including pendant control, wireless remote control, and cabin operation. Most customers prefer remote control for flexibility, but it depends on your working habits.
For standard configurations, installation usually takes a few days to a couple of weeks, depending on crane size and site readiness. A prepared foundation can significantly speed up the process.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
