EOT crane (Electric Overhead Traveling Crane) is one of the most widely used lifting systems in industrial environments. It operates on runway beams installed along both sides of the workshop, allowing efficient material handling across the entire working area.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
Weihua Crane EOT cranes are designed for stable and continuous operation in manufacturing plants, warehouses, and production lines. Depending on lifting requirements, the crane can be configured as single girder or double girder, providing flexibility for different applications.
With a mature structural design and reliable components, EOT cranes help improve productivity while reducing manual handling.
Key Features
01
Full Workshop Coverage
Travels along runway beams to cover the entire working area.
02
Flexible Configuration
Available in single girder and double girder designs.
03
Stable Operation
Smooth traveling and precise load positioning.
04
Adaptable to Different Working Conditions
Suitable for light, medium, and heavy-duty applications.
05
Efficient Material Handling
Reduces manual labor and improves workflow efficiency.
Typical Applications
EOT cranes are widely used in:
-
Automotive Industry Lifting SolutionsAutomotive production lines depend on smooth and well-coordinated material handling at every stage.
-
Paper & Pulp Industry Lifting SolutionsPulp and paper mills run around the clock, where materials are constantly moving between processing stages.
-
Steel Industry Lifting SolutionsThe steel industry demands robust and reliable lifting solutions.
-
Electric Hoist Lifting SolutionsAn electric hoist is a mobile lifting device widely used in industrial production and material handling. It effectively reduces manual labor while enhancing workplace safety and efficiency, making it the top choice for many companies.
They are suitable for general-purpose lifting as well as continuous industrial operations.
Technical Specifications
The following specifications are for standard reference. Weihua Crane can provide customized solutions based on your project requirements.
| Model | Capacity (Ton) | Span (m) | Lifting Height (m) | Hoisting Speed (m/min) | Trolley Speed (m/min) | Crane Speed (m/min) | Girder Type |
| EOT-10 | 1 | 7.5 – 22 | 6 – 12 | 8 / 0.8 | 20 – 30 | 20 – 40 | Single |
| EOT-20 | 2 | 7.5 – 22 | 6 – 12 | 8 / 0.8 | 20 – 30 | 20 – 40 | Single |
| EOT-50 | 5 | 10 – 25 | 6 – 18 | 8 / 0.8 | 20 – 30 | 20 – 40 | Single |
| EOT-100 | 10 | 10 – 28 | 6 – 18 | 7 / 0.7 | 20 – 35 | 25 – 45 | Double |
| EOT-200 | 20 | 10 – 31.5 | 6 – 20 | 3.5 / 0.7 | 25 – 40 | 30 – 50 | Double |
| EOT-500 | 50 | 15 – 35 | 10 – 20 | 3.5 / 0.7 | 25 – 40 | 30 – 50 | Double |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.

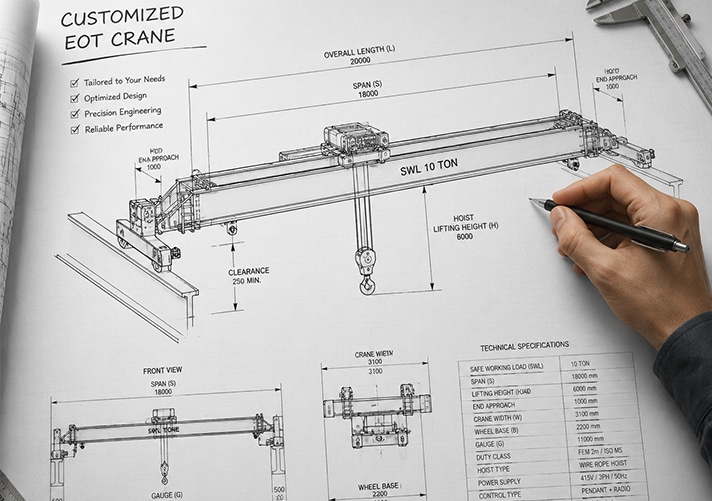

Customization Options
Weihua Crane offers flexible solutions to match different industrial requirements:
Single girder or double girder configuration
Customized lifting capacity, span, and height
Control options (pendant / remote / cabin)
Special design for outdoor or harsh environments
Power supply customization (220V / 380V / 415V)
Our engineering team will provide a suitable solution based on your working conditions.
Why Choose Weihua Crane
Weihua has extensive experience in crane manufacturing and global project delivery. Our EOT cranes are built for reliability and long-term performance.
Our strengths include:
Proven design for industrial applications
Stable operation under continuous use
Flexible customization capability
Professional support for international markets
Frequently Asked Questions
Need Help Selecting the Right EOT Crane?
Choosing the right configuration depends on your lifting requirements and workshop conditions.
Here are some common questions from our customers to help you better understand EOT cranes.If you need further assistance, our team is ready to provide a practical solution.
EOT stands for Electric Overhead Traveling Crane, which moves along overhead runway beams to handle materials across a workshop.
Single girder is more economical and suitable for lighter loads, while double girder is designed for heavier loads and higher duty applications.
It typically ranges from 1 ton to over 50 tons, depending on design and working requirements.
Yes, Weihua Crane can design the crane based on your span, height, and operational needs.
Please share lifting capacity, span, lifting height, working environment, and power supply for accurate selection.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
