Shipbuilding Gantry Crane
Heavy-Duty Lifting Solution for Shipyards by Weihua Crane
30+ Years Manufacturing Experience
Exported to 130+ Countries
Custom Design Within 24 Hours
Port Crane
Shipbuilding Gantry Crane
The Shipbuilding Gantry Crane is a heavy-duty lifting system specifically designed for shipyards and marine construction environments. It is widely used in ship assembly, hull section handling, and large structural lifting operations.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
Compared with standard gantry cranes, shipbuilding gantry cranes are engineered for higher lifting capacity, larger spans, and more complex working conditions. They play a critical role in improving efficiency during ship construction and repair processes.
Weihua Crane provides robust and customized shipbuilding gantry crane solutions designed for demanding marine industry applications.
Key Features
The shipbuilding gantry crane is built to handle large and heavy marine components with stability and precision:
01
Extremely high lifting capacity for shipyard operations
02
Large span design suitable for hull assembly areas
03
Strong wind resistance for outdoor marine environments
04
Multiple lifting points for large structural components
05
Stable operation under heavy-duty continuous working conditions
06
Flexible trolley and hoisting configurations
07
Suitable for shipbuilding, repair, and offshore fabrication
Typical Applications
Shipbuilding gantry cranes are widely used in marine and heavy fabrication industries:
-
Jib Crane Lifting SolutionsA jib crane is a type of lifting equipment. Its horizontal boom is connected to a vertical support and can rotate at multiple angles, enabling radial lifting movement within a fixed working area.
-
Crane Parts SolutionsOnce a crane is put into production use, its performance is evaluated not only by the overall machine quality, but also by the compatibility of each component with the complete system. Whether it is the hook, drum, or grab, all these crane parts directly affect lifting efficiency, operator safety, and subsequent maintenance costs.
-
Electric Hoist Lifting SolutionsAn electric hoist is a mobile lifting device widely used in industrial production and material handling. It effectively reduces manual labor while enhancing workplace safety and efficiency, making it the top choice for many companies.
-
Port Crane SolutionsThe volume of containers, bulk cargo, and general cargo handled by modern ports continues to increase every year. Efficient port crane systems help ports improve cargo turnover, shorten vessel turnaround times, and maintain smooth logistics operations.
They are essential equipment in modern shipbuilding facilities where large-scale lifting is required.
Technical Specifications
| Item | Specification | Unit | Description | Options | Remark |
| Lifting Capacity | 50 – 1000 | ton | Heavy-duty range | Custom available | Shipyard grade |
| Span | 20 – 120 | m | Working span | Adjustable | Project-based |
| Lifting Height | 10 – 60 | m | Vertical lifting range | Customizable | Hull section handling |
| Working Duty | A5 – A8 | — | Heavy industrial | Upgrade available | Continuous operation |
| Lifting Speed | 0.5 – 10 | m/min | Hoisting speed | VFD optional | Precise control |
| Trolley Speed | 5 – 40 | m/min | Horizontal movement | Adjustable | Stable operation |
| Travel Speed | 10 – 30 | m/min | Crane movement | Adjustable | Outdoor use |
| Power Supply | 380 – 690 | V | 3-phase | 50/60Hz | Industrial standard |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.

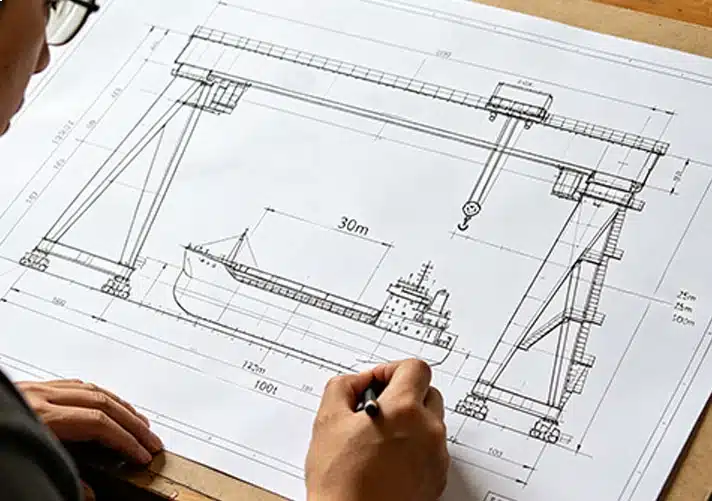

Custom Engineering for Shipyard Applications
Shipbuilding projects are highly complex and vary significantly from one yard to another. That’s why Weihua Crane provides fully customized shipbuilding gantry crane solutions based on real project conditions.
We offer engineering customization including:
Tailored span and lifting height for dock and assembly areas
Multi-hook or synchronized lifting systems for large hull sections
Reinforced structure for high wind and marine environments
Rail-mounted or semi-mobile configurations
Custom lifting speed control for precision assembly
Anti-corrosion coatings for offshore and coastal environments
Integration with shipyard production systems
Our engineering team works closely with shipyard planners to ensure the crane matches both production flow and structural requirements.
Why Choose Weihua Crane
Weihua Crane provides reliable heavy-duty lifting solutions for global shipyards:
Strong experience in marine and offshore crane projects
High-capacity engineering design capability
Durable structure built for harsh environments
Customized solutions for different shipyard layouts
Global technical support and installation guidance
We focus on delivering cranes that perform reliably in demanding marine conditions.
Frequently Asked Questions
A shipbuilding gantry crane is used for lifting large ship components such as hull sections, blocks, and heavy marine structures during construction and repair.
Yes, span, height, and structure can all be customized based on dock size and production requirements.
Yes, shipbuilding gantry cranes are designed for heavy-duty lifting, with capacities reaching up to 1000 tons depending on configuration.
Yes, the crane is designed with anti-corrosion protection and strong wind resistance for coastal and offshore environments.
Yes, Weihua Crane provides full engineering support, including design, installation guidance, and after-sales service worldwide.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
