Portable Gantry Crane
Flexible Lifting Solution for Multiple Working Environments
30+ Years Manufacturing Experience
Exported to 130+ Countries
Custom Design Within 24 Hours
Gantry Crane
Portable Gantry Crane

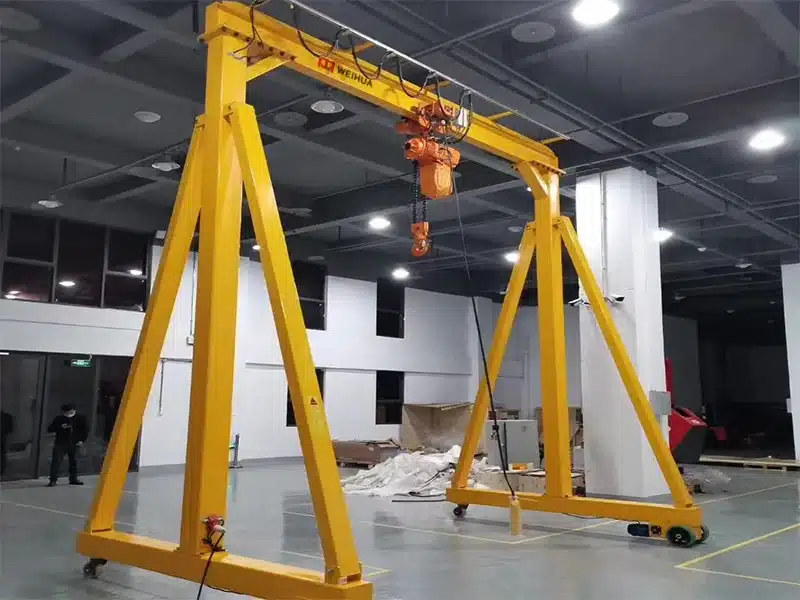

Portable gantry crane is a practical lifting solution designed for applications where fixed crane systems are not suitable. Compared with overhead cranes, it does not rely on plant structure and can be moved freely according to operational needs.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Contact
- Why-Us
- Cases
- Faq
Products Overview
Weihua Crane portable gantry cranes are widely used in workshops, warehouses, equipment maintenance areas, and temporary job sites. The equipment combines simple structure with reliable performance, making it a cost-effective choice for light to medium lifting tasks.
Key Features
01
Flexible Mobility
Equipped with swivel casters or rail traveling options, easy to move within different working areas.
02
Quick Assembly
Modular design allows fast installation and dismantling without special foundation.
03
Adjustable Design
Height and span can be adjusted or customized to meet different site requirements.
04
Stable and Durable Structure
High-quality steel frame ensures safety and long service life.
05
Multiple Hoist Options
Compatible with electric chain hoist or wire rope hoist based on lifting needs.
Typical Applications
Portable gantry cranes are suitable for a wide range of working conditions:
-
KBK Crane SystemsLifting SolutionsKBK crane systems provide a flexible and efficient lifting solution for modern manufacturing facilities. With their modular suspended design, these cranes help move materials safely and accurately while maximizing available workspace.
-
Crane Parts SolutionsOnce a crane is put into production use, its performance is evaluated not only by the overall machine quality, but also by the compatibility of each component with the complete system. Whether it is the hook, drum, or grab, all these crane parts directly affect lifting efficiency, operator safety, and subsequent maintenance costs.
-
Port & Shipyard Lifting SolutionsPort terminals and shipyards operate in demanding environments where lifting equipment must handle large loads, long shifts, and harsh conditions.
-
Gantry Crane SolutionsThe gantry crane is suitable for outdoor material handling. The gantry structure enables it to serve storage areas, production zones, and construction sites without relying on building structures. In addition, it offers stable lifting and accurate load positioning, which helps enhance material handling efficiency.
They are especially useful in areas where overhead cranes cannot be installed.
Technical Specifications
The following parameters are standard reference values. Weihua supports full customization based on project requirements.
| Model | Capacity (Ton) | Span (m) | Height (m) | Lifting Speed (m/min) | Traveling Type | Wheel Type |
| PG-05 | 0.5 | 2 – 4 | 2 – 3 | 0.8 / 7 | Manual | Nylon |
| PG-10 | 1 | 3 – 5 | 2 – 4 | 0.8 / 7 | Manual / Motorized | PU |
| PG-20 | 2 | 3 – 6 | 3 – 5 | 0.8 / 7 | Motorized | PU |
| PG-30 | 3 | 4 – 7 | 3 – 6 | 0.8 / 7 / 14 | Motorized | Steel |
| PG-50 | 5 | 5 – 8 | 4 – 6 | 0.8 / 7 / 14 | Motorized | Steel |
| PG-100 | 10 | 6 – 10 | 5 – 8 | 0.7 / 7 / 14 | Motorized | Steel |
Note: All parameters can be customized based on your project requirements.
Optional Configuration
- Power Supply: 220V / 380V / 415V
- Control Mode: Pendant / Remote Control
- Wheel Type: Nylon / PU / Steel
- Adjustable Type: Fixed Height / Adjustable Height
Not sure which model fits your project? Contact our engineers for selection support.

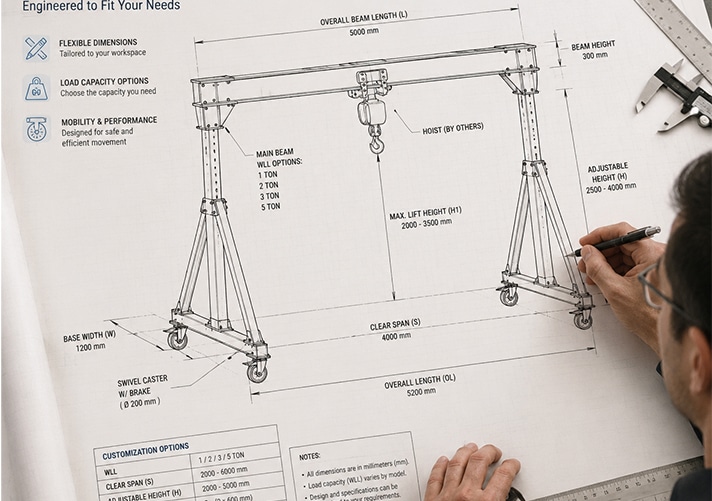

Customization Service
Every working condition is different. Weihua Crane can provide tailored solutions based on:
Workshop size and layout
Required lifting capacity
Indoor or outdoor application
Power supply standards
Frequency of use
Our engineers will recommend the most suitable configuration after reviewing your project details.
Why Choose Weihua Crane
Weihua has extensive experience in crane manufacturing and international projects. Our portable gantry cranes are designed with a focus on practicality, safety, and efficiency.
Our strengths include:
Reliable quality with strict manufacturing standards
Export experience for global markets
Flexible design for various applications
Fast response and professional support
We don’t just supply cranes — we deliver complete lifting solutions.
Looking for a Flexible Lifting Solution?
Portable gantry cranes are a practical choice for workshops, warehouses, and maintenance jobs where flexibility matters.
If you’re unsure about capacity, size, or configuration, just share your basic requirements. We’ll help you find a model that fits your space and workload.
Most portable gantry cranes are designed for light to medium-duty lifting, usually from 0.5 ton to around 10 tons. It depends on the model and structure, so it’s best to confirm your load requirements first.
Yes, that’s one of its main advantages. It usually comes with wheels or casters, so it can be moved manually or with light assistance, as long as the floor is relatively smooth and level.
Yes, the structure is relatively simple. Most models are designed for quick assembly using basic tools. It’s suitable for sites where the crane needs to be relocated or stored when not in use.
No, portable gantry cranes do not need rails. They are free-standing and can be used directly on the ground, which makes them ideal for temporary or flexible lifting tasks.
It can be equipped with either manual hoists or electric hoists, depending on your lifting needs. Many customers choose electric hoists for higher efficiency and ease of operation.
Get Your Custom Crane Solution
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
Our team will get back to you with a suitable solution within 24 hours.
