Electric Hoist
Weihua Lifting Equipment
Reliable Lifting Solutions for Workshops, Warehouses & Industrial Applications
European Standard Design | Stable Performance | Custom Configurations Available
Quick Overview of Our Electric Hoists
- Capacity: 0.5T – 50T
- Lifting Height: 3m – 30m
- Type: Wire Rope / Chain Hoist
- Control: Pendant / Remote
- Power: Customizable
Electric Hoist We Supply
-
Double Speed Electric Hoist
Double Speed Electric Hoist
- Lifting Capacity: up to 10 t (Customizable)
- Lifting Height: up to 24m (Customizable)
- Applications: factories, warehouses, etc
-

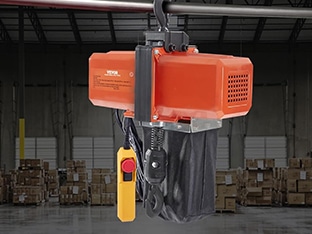

Electric Chain Hoist
Electric Chain Hoist
- Capacity: up to 10 t (Customizable)
- Lifting Height: up to 18m (Customizable)
- Applications: factories, workshops, etc
-

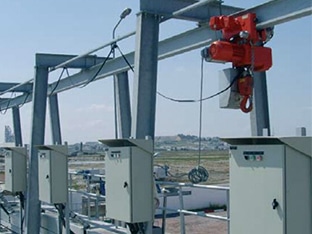

Explosion-Proof Hoist
Explosion-Proof Hoist
- Capacity: up to 20t (Customizable)
- Span Length: up to 30m (Customizable)
- Applications: oil & gas, etc.
-
Low Headroom Hoist
Low Headroom Hoist
- Capacity: up to 20t (Customizable)
- Span Length: up to 24m (Customizable)
- Applications: factories, warehouses, etc.
-

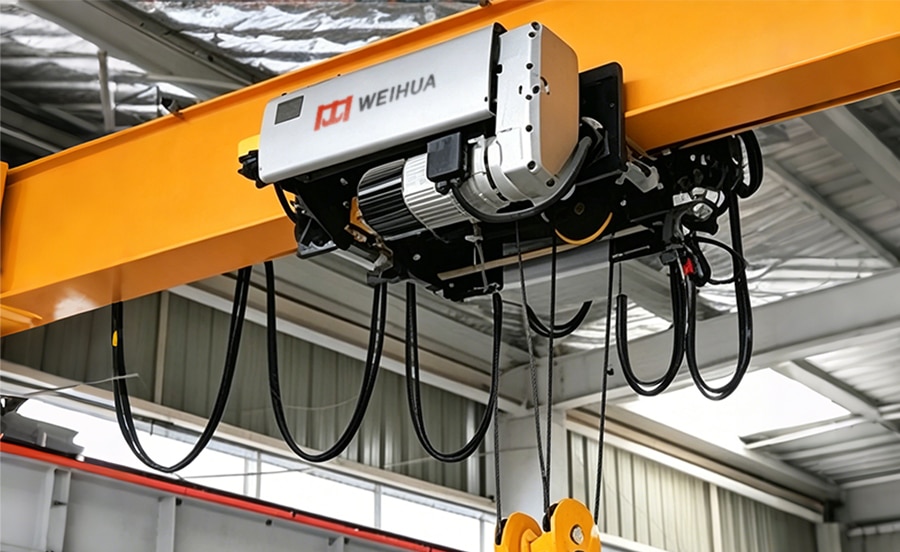

European Type Electric Hoist
European Type Electric Hoist
- Capacity: up to 20t (Customizable)
- Span Length: up to 30m (Customizable)
- Applications: industrial environments
-

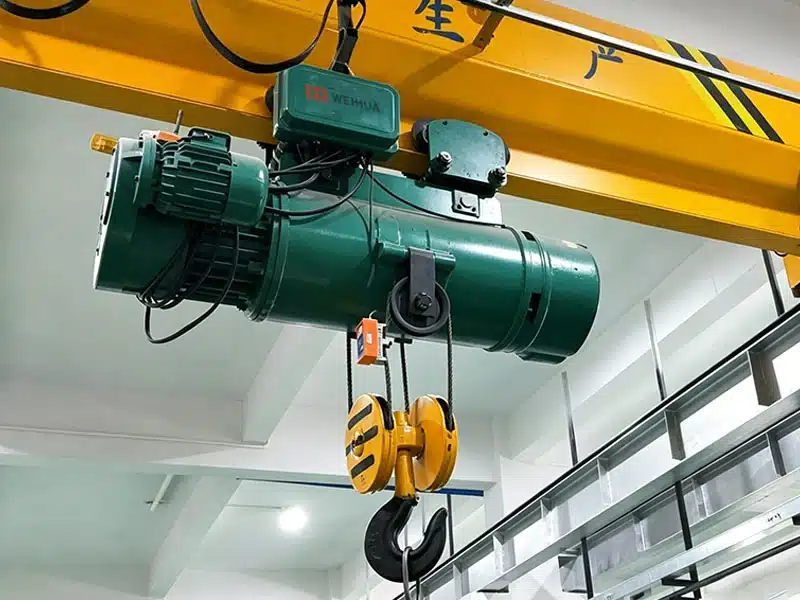

Wire Rope Electric Hoist
Wire Rope Electric Hoist
- Capacity: up to 16t (Customizable)
- Span Length: up to 30m (Customizable)
- Applications: industrial environments
Electric Hoist:
Specifications & Technical Parameters
| Item | Specification |
| Lifting Capacity | 0.5 Ton – 50 Ton |
| Lifting Height | 3m – 30m (customizable) |
| Hoist Type | Wire Rope Hoist / Electric Chain Hoist |
| Working Class | M3 – M6 (ISO / FEM Standard) |
| Lifting Speed | 0.8 – 8 m/min (dual speed / VFD optional) |
| Trolley Speed | 2 – 20 m/min |
| Power Supply | 220V – 690V / 50Hz / 60Hz (customizable) |
| Control Method | Pendant Control / Remote Control |
| Motor Protection Class | IP54 / IP55 / IP65 |
| Insulation Class | F / H |
| Wire Rope Type | High-strength galvanized steel wire rope |
| Chain Type | Grade 80 / Grade 100 alloy steel chain |
| Hook Type | Forged hook with safety latch (360° rotation optional) |
| Brake System | Electromagnetic brake |
| Limit Device | Upper & lower limit switch |
| Safety Devices | Overload limiter / Emergency stop / Phase protection |
| Working Temperature | -20°C ~ +50°C |
| Installation Type | Fixed / Monorail / Double beam trolley |
| Surface Treatment | Powder coating / Anti-corrosion painting |
| Color | Customizable (Standard: Yellow) |
All specifications can be customized based on your project requirements.
Reliable electric hoist solutions for efficient lifting operations
We supply durable electric hoists designed for safe and efficient lifting of heavy loads in workshops, warehouses, and industrial facilities.
Our hoists are built for stable performance, easy operation, and long service life under demanding working conditions.
High lifting capacity with stable performance
Suitable for workshop, warehouse, and industrial use
Smooth operation with a reliable braking system
Overload protection for safer lifting
Available in wire rope and chain hoist types
Applications & Advantages
- Compact design with efficient lifting power
- Smooth lifting and accurate load control
- Easy maintenance and simple operation
- Available for wire rope and chain systems
- Suitable for factories and assembly stations
Machinery Shop
Automotive Parts Manufacturing Plant
Warehousing and Logistics Center
Equipment Maintenance and Repair Site
Building Engineering and Precast Components Plant
Project Experience
Suspended Electric Hoists – Germany
- Project Location: Germany
- Industry: Automotive Parts Manufacturing
- Equipment Supplied: Weihua 2 Ton Suspended Electric Hoist Systems
- Application: Assembly Line Material Handling & Component Transfer
European-Style Electric Hoist – Australia
- Project Location: Melbourne, Australia
- Industry: Warehousing & Logistics
- Equipment Supplied: Weihua 5-Ton European-Style Electric Hoist System
- Application: Overhead Cargo Handling and Warehouse Material Transfer
Why Choose Weihua Crane
38 years manufacturing experience
Exported to 130+ countries
Strong engineering support
ISO & CE certified
Reliable after-sales service
Frequently Asked Questions
Still have questions? Talk to your engineer for a quick solution.
Wire rope hoists are better for heavy-duty and long lifting heights.
Chain hoists are more compact and ideal for lighter, short-distance lifting.
Choose a hoist with at least 20–30% higher capacity than your actual load to ensure safety and durability.
Yes, but outdoor use requires weather protection and anti-corrosion options. We can customize based on your environment.
We offer flexible options such as 220V / 380V / 415V, 50Hz or 60Hz, single-phase or three-phase.
Basic inspection should be done regularly, with a full check every 6–12 months depending on usage.
Yes, we provide manuals, drawings, and remote technical support. On-site service is also available if needed.
Get Your Electric Hoist Solution & Quote
We will reply within 24 hours. Your information will be kept confidential.
Tell us your lifting requirements and our engineers will provide:
- Suitable crane model
- Technical solution
- Competitive quotation
- Delivery time estimation
