Aluminum Gantry Cranes

Let’s be honest: moving and setting up a traditional steel gantry crane is a workout. That’s exactly why we engineered the Weihua Aluminum Gantry Crane.

We built this system for facilities that need serious lifting power without the dead weight. By using high-strength structural aluminum alloys, we’ve created a crane that your team can actually assemble, break down, and roll away by hand. Whether you’re working in a strict cleanroom, an aircraft hangar, or just need to shift equipment between bays, our aluminum gantry gives you the flexibility to get the job done faster and safer.

Trusted by Global Industrial Clients

5000+ Crane Projects Delivered

ISO / CE Certified Manufacturer

Serving Steel, Logistics, and Construction Industries

24/7 Technical Support

Get a Free Quote

WhatsApp Inquiry

Share To:

Overview
Specifications
Features
Applications
Custom
Why-Us

Products Overview

Why Facilities Switch to Aluminum？

Half the Weight, All the Strength You don’t sacrifice load capacity for portability. Our aerospace-grade aluminum profiles are engineered to handle heavy loads safely, but they weigh a fraction of their steel counterparts.

Set Up in Minutes, Not Hours The modular design means no specialized rigging or forklifts are needed just to get it off the truck. Two people can bolt it together and get it working quickly.

Built to Roll When the lift is done, you don’t need to dismantle it. Heavy-duty swivel casters let one person glide the empty crane across the floor to the next job site.

Naturally Rust-Proof Taking it outside? Working in a damp environment? Because it’s aluminum, you never have to worry about rust, peeling paint, or contaminating your workspace.

Smart Adjustability Working around low pipes or tight doorways? Many of our models feature adjustable legs. Just pull the pins, slide the leg to the height you need, and lock it back in.

Standard Specifications

Here’s a look at our standard lineup.

(Keep in mind, if you need something outside these specs, we can build it).

Model	Capacity	Span	Adjustable Height	Overall Height	Beam Type	Wheel Type
AGC-05	0.5 Ton	2-4m	2-3m	2.5-3.5m	Aluminum I-Beam	Swivel Caster
AGC-10	1 Ton	2-5m	2-4m	2.8-4.5m	Aluminum I-Beam	Swivel Caster
AGC-20	2 Ton	3-6m	2.5-5m	3-5.5m	Reinforced Alu-Beam	Swivel Caster
AGC-30	3 Ton	3-7m	3-5m	3.5-6m	Reinforced Alu-Beam	Locking Caster
AGC-50	5 Ton	4-8m	3-6m	4-7m	Box Aluminum Beam	Locking Caster
AGC-80	8 Ton	4-8m	4-6m	4.5-7.5m	Heavy Duty Alu-Beam	Heavy-Duty Caster

Note: All parameters can be customized based on your project requirements.

Not sure which model fits your project? Contact our engineers for selection support.

Get Free Recommendation

Where They Work Best

We see our aluminum cranes doing the heavy lifting in environments where steel cranes just don’t fit:

01

Cleanrooms & Food Processing: Where rust and heavy particles are a no-go.

02

Aviation & Aerospace: For agile maintenance in tight hangar spaces.

03

Warehouses & Logistics: Easy to roll out of the way when not in use.

04

Water Treatment & Outdoor Sites: Where the elements would destroy a standard steel crane.

05

General Machine Shops: For quick, everyday maintenance lifts.

Typical Applications：

Heavy-Duty Lifting. Featherlight Mobility. Aluminum Gantry Cranes are commonly used in:

Overhead Crane Solutions
The overhead crane is an indispensable piece of heavyduty material handling equipment in modern industry. It is composed of parallel fixed tracks above the factory building, the main beams (single or double) that span across, the trolley that can move along the main beam, and the lifting mechanism. The overhead crane can efficiently achieve the lifting and horizontal movement of heavy objects in the factory or specific working areas.

View More
Energy & Power Plant Lifting Solutions
Power plants and energy facilities require lifting equipment that can handle critical components with care and stability.

View More
Warehouse & Logistics Lifting Solutions
In warehouse and logistics operations, speed and accuracy matter just as much as safety.

View More
Jib Crane Lifting Solutions
A jib crane is a type of lifting equipment. Its horizontal boom is connected to a vertical support and can rotate at multiple angles, enabling radial lifting movement within a fixed working area.

View More

Get Solution for Your Industry

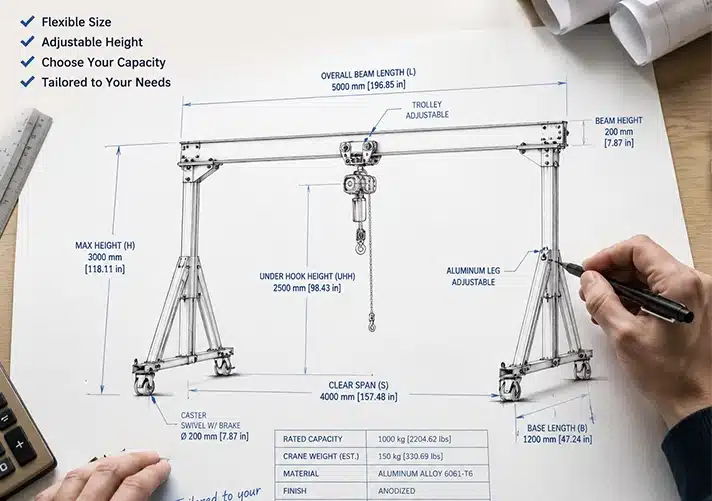

Need Something Custom?

We know one size rarely fits all. If your facility has unique constraints, our engineering team can tweak the design. We regularly customize:

Folding designs for tight storage spaces.

Non-marking polyurethane wheels (so they won’t scratch your expensive epoxy floors).

Motorized travel options for heavier capacities.

Integration with specific electric chain or wire rope hoists.

Our engineering team ensures every crane fits your exact lifting needs.

The Weihua Difference

Look, there are plenty of cheap knock-offs out there. But when you’re lifting expensive machinery or working over an active production line, you need gear that won’t fail.

Weihua has been engineering lifting equipment for decades. We don’t just cut and weld aluminum; we engineer the load paths, test the casters, and ensure the beams don’t deflect under load. When you buy from us, you’re getting actual engineering support and a crane built to last, not just a quick sale.
