CANTILEVER CRANES
WEIHUA LIFTING EQUIPMENT
Flexible Lifting for Every Workstation 360° Rotation,
Streamline Your Workflow
Jib Crane Quick Overview
- Capacity: 0.25T – 10T
- Arm Length: Up to 10m
- Rotation: 180° / 270° / 360°
- Installation: Floor / Wall-mounted
Jib Crane We Supply
-

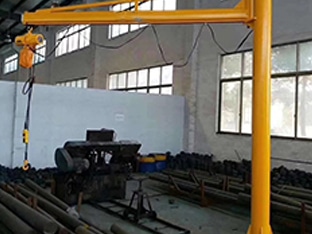

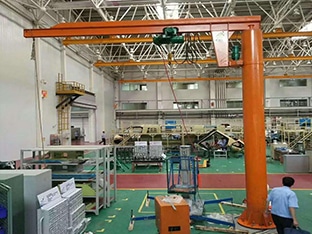

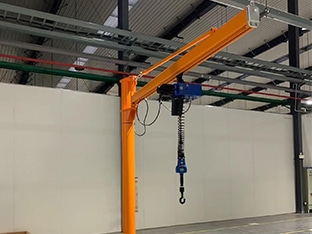

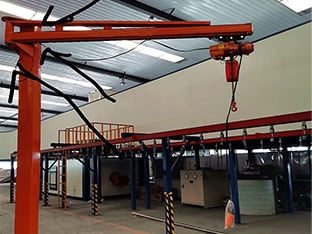

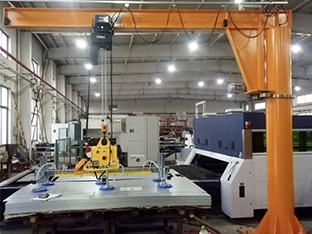

Pillar Jib Crane
Pillar Jib Crane
- Capacity: up to 10t (Customizable)
- Span Length: up to 10m (Customizable)
- Applications: workshops, warehouses, etc.
-
Articulating Jib Crane
Articulating Jib Crane
- Capacity: up to 2t (Customizable)
- Span Length: up to 8m (Customizable)
- Applications: modern production environments
-
Single Arm Crane
Single Arm Crane
- Capacity: up to 10t (Customizable)
- Span Length: up to 10m (Customizable)
- Applications: workshops, etc.
-

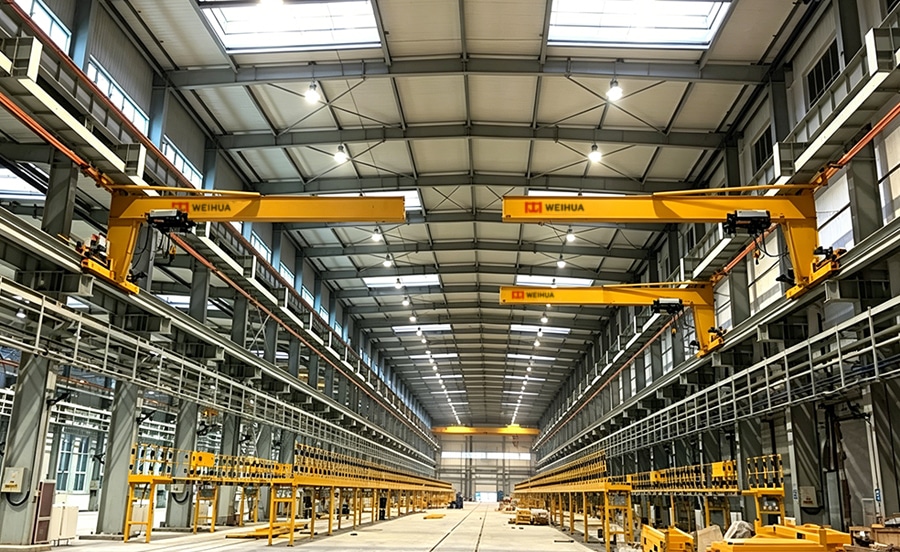

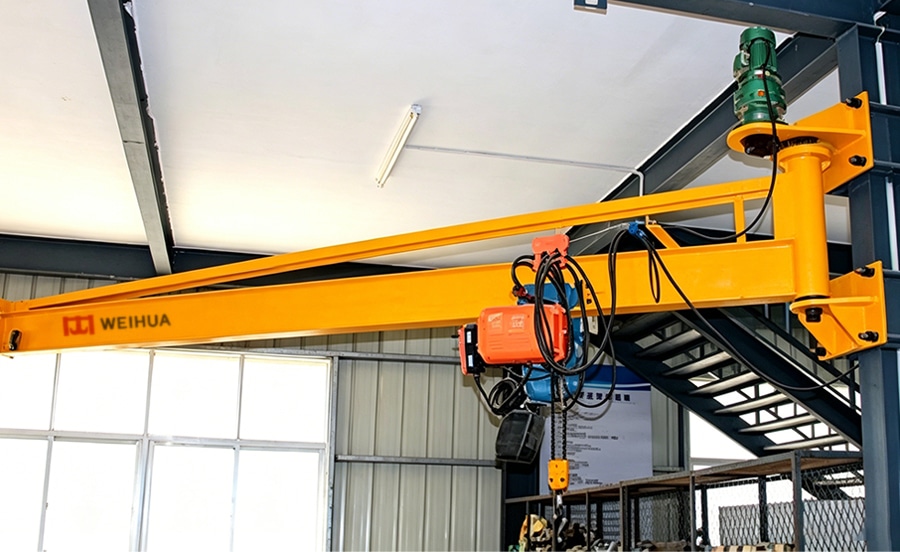

Wall-Mounted Jib Crane
Wall-Mounted Jib Crane
- Capacity: up to 10t (Customizable)
- Span Length: up to 8m (Customizable)
- Applications: production lines, etc.
Jib Crane:
Specifications & Technical Parameters
| Item | Specification |
| Lifting Capacity | 0.25 Ton – 10 Ton |
| Arm Length (Jib Length) | 2m – 10m |
| Lifting Height | 2m – 12m (customizable) |
| Rotation Angle | 180° / 270° / 360° |
| Rotation Type | Manual / Electric |
| Lifting Speed | 0.8 – 8 m/min |
| Trolley Traveling Speed | 2 – 20 m/min |
| Working Class | A3 – A5 (ISO / FEM Standard) |
| Power Supply | 220V – 690V / 50Hz / 60Hz (customizable) |
| Control Method | Pendant Control / Remote Control |
| Installation Type | Pillar Mounted / Wall Mounted / Wall Traveling |
| Hoist Type | Electric Chain Hoist / Wire Rope Hoist |
| Column Height | Customized based on site conditions |
| Rotation Speed | 0.5 – 1 r/min (electric rotation) |
| Motor Protection Class | IP54 / IP55 |
| Insulation Class | F |
| Working Temperature | -20°C ~ +50°C |
| Safety Devices | Overload limiter / Limit switch / Emergency stop |
| Surface Treatment | Sandblasting + Anti-corrosion Painting |
| Color | Customizable (Standard: Yellow) |
All specifications can be customized based on your project requirements.
Flexible jib crane solutions for efficient local lifting
We supply durable jib crane systems designed for efficient material handling in workshops, assembly areas, and production stations.
Our solutions help improve lifting efficiency in limited working spaces with smooth and reliable operation.
Flexible rotation for easy local material handling
Suitable for workshops, warehouses, and production lines
Wall-mounted or column-mounted options available
Smooth operation with stable lifting performance
Custom capacity and arm length based on requirements
Applications & Advantages
- Flexible rotation for localized lifting tasks
- Space-saving solution for workstations
- Improves handling efficiency and safety
- Easy integration with hoists and tools
- Ideal for workshops and loading areas
Machine Tool Processing Workshop
Welding Tooling Workshop
Equipment Maintenance and Repair
Warehouse Material Unloading Area
Auto Parts Assembly
Project Experience
Automotive Welding Workshop – Kazakhstan
- Project Location: Kazakhstan
- Industry: Automotive Parts Manufacturing
- Equipment Supplied: Weihua BZ Type 5-Ton Pillar Jib Crane
- Application: Welding Workshop, Material Handling, and Component Transfer
Precision Machining Workshop – Malaysia
- Project Location: Penang, Malaysia
- Industry: Precision Machinery Manufacturing
- Equipment Supplied: Weihua BX Type 3-Ton Wall-Mounted Jib Crane
- Application: CNC Machine Loading and Material Handling
Why Choose Weihua Crane
38 years manufacturing experience
Exported to 130+ countries
Strong engineering support
ISO & CE certified
Reliable after-sales service
Frequently Asked Questions
Still have questions? Talk to your engineer for a quick solution.
Jib cranes are ideal for workstation lifting, such as loading, unloading, and material handling in workshops, warehouses, and production lines.
The most common types include wall-mounted jib cranes, pillar (floor-mounted) jib cranes, and wall-traveling jib cranes, depending on your workspace.
Jib cranes are usually designed for light to medium-duty lifting, typically ranging from 0.5 ton to 5 ton.
The working radius depends on the arm length, commonly from 2m to 10m. It should be selected based on your actual workspace coverage.
Yes, most pillar-mounted jib cranes support 360° rotation, while wall-mounted types usually offer 180° rotation.
Yes, we can customize lifting capacity, arm length, rotation angle, and installation type based on your site conditions.
Get Your Jib Crane Solution & Quote
We will reply within 24 hours. Your information will be kept confidential.
Tell us your lifting requirements and our engineers will provide:
- Suitable crane model
- Technical solution
- Competitive quotation
- Delivery time estimation
Prefer quick response? Contact us via WhatsApp
