Low Headroom Hoist
Space-Saving Lifting Solution by Weihua Crane
30+ Years Manufacturing Experience
Exported to 130+ Countries
Custom Design Within 24 Hours
Electric Hoist
Low Headroom Hoist
In many industrial facilities, lifting space is limited by building height. A standard hoist may not provide enough lifting clearance, which directly affects efficiency and equipment layout.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Specifications
- Applications
- Design
- Why-Us
- Cases
- Faq
Products Overview
The Low Headroom Hoist from Weihua Crane is specifically designed to solve this problem. By reducing the distance between the hook and the beam, it maximizes available lifting height without requiring any structural changes to your workshop.
This makes it an ideal solution for factories, warehouses, and production lines where space is tight but lifting performance cannot be compromised.
Key Features
The low headroom hoist is engineered for both performance and space efficiency:
01
Optimized compact design to maximize lifting height
02
Reduced hook-to-beam distance for better space utilization
03
Smooth and stable operation with minimal vibration
04
Lower overall plant height requirements
05
Energy-efficient motor and transmission system
06
Easy installation on existing overhead crane systems
07
Reliable performance in continuous working conditions
Technical Specifications
| Item | Specification | Unit | Description | Options | Remark |
| Lifting Capacity | 1 – 20 | ton | Standard capacity | Custom available | Based on project needs |
| Lifting Height | 3 – 24 | m | Optimized for low clearance | Adjustable | Site-specific design |
| Lifting Speed | 0.8 – 7 | m/min | Single/Dual speed | VFD optional | Smooth lifting |
| Trolley Speed | 5 – 20 | m/min | Travel speed | Adjustable | Stable movement |
| Headroom Height | Reduced | — | Low clearance design | Customizable | Key advantage |
| Working Duty | M4 – M6 | — | Industrial use | Upgrade available | Heavy-duty optional |
| Power Supply | 220 – 480 | V | 3-phase | 50/60Hz | International standard |
| Control Mode | Pendant / Remote | — | Standard | Cabin optional | Flexible control |
Note: All parameters can be customized based on your project requirements.
Not sure which model fits your project? Contact our engineers for selection support.
Typical Applications
Low headroom hoists are widely used in environments where space is limited:
-
Electric Hoist Lifting SolutionsAn electric hoist is a mobile lifting device widely used in industrial production and material handling. It effectively reduces manual labor while enhancing workplace safety and efficiency, making it the top choice for many companies.
-
Overhead Crane SolutionsThe overhead crane is an indispensable piece of heavy duty material handling equipment in modern industry. It is composed of parallel fixed tracks above the factory building, the main beams (single or double) that span across, the trolley that can move along the main beam, and the lifting mechanism. The overhead crane can efficiently achieve the lifting and horizontal movement of heavy objects in the factory or specific working areas.
-
Steel Industry Lifting SolutionsThe steel industry demands robust and reliable lifting solutions.
-
Jib Crane Lifting SolutionsA jib crane is a type of lifting equipment. Its horizontal boom is connected to a vertical support and can rotate at multiple angles, enabling radial lifting movement within a fixed working area.
They are especially valuable when upgrading old crane systems without modifying the building structure.

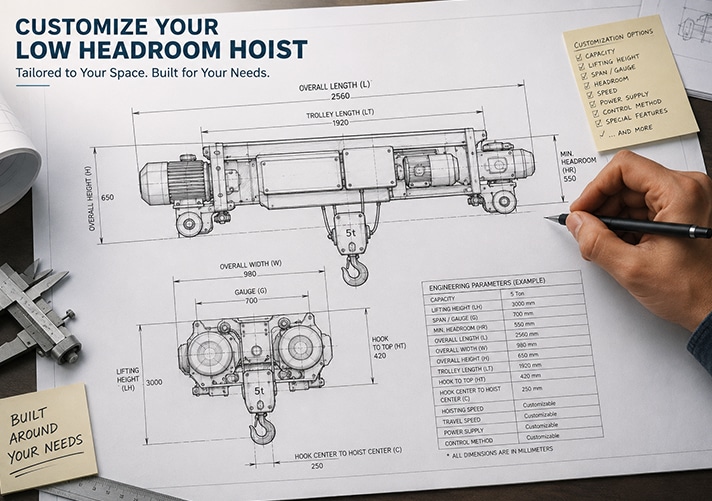

Custom Engineering for Your Project
Every facility has different structural limitations. Weihua Crane understands that low headroom applications often require more than just a standard configuration.
We offer tailor-made low headroom hoist solutions to match your exact working conditions:
Custom headroom design based on beam size and structure
Optimized hook travel distance for maximum lifting height
Adaptation to different crane types (overhead / single girder / double girder)
Special voltage and frequency configurations for international projects
Variable speed control for precision lifting
Solutions for high-temperature, dusty, or special environments
Our engineers will review your layout drawings and recommend the most efficient configuration, ensuring you get maximum lifting performance within limited space.
Why Choose Weihua Crane?
With years of experience in crane manufacturing, Weihua Crane delivers practical solutions for real industrial challenges:
Strong engineering capability for non-standard designs
Strict quality control from components to assembly
Proven performance in global industrial projects
Fast response for technical consultation
Reliable after-sales service and long-term support
We focus not only on supplying equipment, but on solving lifting problems efficiently.
Frequently Asked Questions
A low headroom hoist is designed to reduce the distance between the hook and the beam, allowing higher lifting height in limited spaces. It is essential for workshops with restricted ceiling height.
Yes, the headroom dimension can be customized based on your beam size, crane structure, and required lifting height.
In most cases, yes. Our engineers can adapt the hoist to your existing overhead crane system with minimal modification.
Yes, VFD control is optional, allowing smooth lifting, precise positioning, and reduced mechanical stress.
Yes, Weihua Crane supports global projects with technical guidance, installation support, and long-term after-sales service.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
