Low Headroom Overhead Crane

A Low Headroom Overhead Crane works well in buildings with limited headroom. Its compact hoist gives the hook a higher lifting position, so you can use more of the available space. It also helps improve lifting efficiency in daily production.

Trusted by Global Industrial Clients

5000+ Crane Projects Delivered

ISO / CE Certified Manufacturer

Serving Steel, Logistics, Construction Industries

24/7 Technical Support

Get a Free Quote

WhatsApp Inquiry

Share To:

Overview
Features
Applications
Parameters
Customization
Why-Us
Faq

Products Overview

In the existing factory building that cannot be expanded, this product utilizes a low-headroom design to position the hook closer to the beam, achieving the maximum space-saving lifting.

Key Features

Compact Lifting Design

The design of this product positions the hook closer to the beam, allowing it to be raised to the highest point within the workshop as much as possible. This not only expands the height of the space but also optimizes the workflow to the greatest extent.

More Working Space

The higher position of the hook provides the operator with more lifting space, enabling them to better handle large equipment such as steel models.

Smooth Operation

The crane is equipped with precisely machined wheels, high-quality motors, and reliable drive components, ensuring smooth and stable movements during daily operation.

Precise Load Positioning

An optional variable frequency drive (VFD) can reduce vibrations during start-up and stop, making the load operation more stable and precise.

Easy Installation

The compact design saves installation space and makes the installation process more convenient. It is also suitable for many existing workshop buildings, without the need for major structural modifications.

Low Maintenance Costs

We use high-quality key components that ensure a long service life. Common wear parts are easy to replace and readily available on the market.

Typical Applications

Single girder overhead cranes are widely used in:

Port Crane Solutions
The volume of containers, bulk cargo, and general cargo handled by modern ports continues to increase every year. Efficient port crane systems help ports improve cargo turnover, shorten vessel turnaround times, and maintain smooth logistics operations.

View More
Overhead Crane Solutions
The overhead crane is an indispensable piece of heavyduty material handling equipment in modern industry. It is composed of parallel fixed tracks above the factory building, the main beams (single or double) that span across, the trolley that can move along the main beam, and the lifting mechanism. The overhead crane can efficiently achieve the lifting and horizontal movement of heavy objects in the factory or specific working areas.

View More
Electric Hoist Lifting Solutions
An electric hoist is a mobile lifting device widely used in industrial production and material handling. It effectively reduces manual labor while enhancing workplace safety and efficiency, making it the top choice for many companies.

View More
Energy & Power Plant Lifting Solutions
Power plants and energy facilities require lifting equipment that can handle critical components with care and stability.

View More

They are suitable for most general-purpose lifting tasks.

Get Solution for Your Industry

Technical Parameters

The following specifications are for standard reference. Weihua Crane can customize according to your project requirements.

Model	Lifting Capacity	Span	Lifting Height	Hoisting Speed	Crane Travel Speed	Trolley Travel Speed	DutyClass
LH-1	1 t	7.5–22.5 m	6–18 m	0.8/5 m/min	20 m/min	20 m/min	M3
LH-2	2 t	7.5–28.5 m	6–18 m	0.8/5 m/min	20 m/min	20 m/min	M3
LH-3.2	3.2 t	7.5–28.5 m	6–18 m	0.8/5 m/min	20 m/min	20 m/min	M3
LH-5	5 t	7.5–31.5m	6–24 m	0.8/5 m/min	20–30 m/min	20 m/min	M4
LH-10	10 t	10.5–31.5m	6–24 m	0.7/7m/min	20–30 m/min	20 m/min	M4
LH-16	16 t	10.5–31.5m	6–24 m	0.6/6m/min	20–30 m/min	20 m/min	M5
LH-20	20 t	10.5–31.5m	6–24 m	0.6/6m/min	20–30 m/min	20 m/min	M5

Note: The specifications listed above are for reference only.

Technical parameters can customized as needed

Optional Configurations

Power Supply: 220V / 380V / 415V / 440V

Control Method: Pendant Control / Wireless Remote Control / Cabin Control

Hoisting & Travel Speed: Fixed Speed / Variable Frequency (VFD)

Hoist Type: Standard Wire Rope Hoist / European Low Headroom Hoist

Safety Devices: Overload Limiter / Limit Switch / Emergency Stop

Not sure which configuration fits your project? Contact our engineers for selection support.

Get Free Recommendation

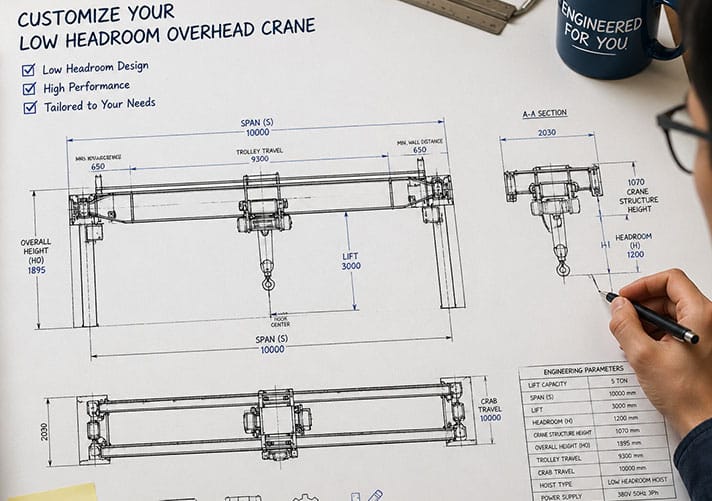

Customization Service

Every workshop has different space and lifting requirements. We provide customized low headroom overhead crane solutions based on your project.

Low headroom height and installation dimensions

Lifting capacity and span

Lifting height and hoisting speed

Power supply and control method

Working duty and operating environment

Our engineers will recommend a suitable configuration after reviewing your workshop layout and lifting requirements.

Why Choose Our Low Headroom Overhead Crane?

We customize every crane to fit your project. We inspect each crane before shipment and use reliable components for long-term operation. Our team also provides technical support and spare parts after delivery.

Our strengths include:

Proven design for industrial use

Stable quality and performance

Flexible customization capability

Fast response for international customers

Frequently Asked
Questions

Need Help Choosing the Right Crane?

The answers on the right cover some of the most common questions about our low headroom overhead cranes. If you need more information or a customized solution, feel free to contact our team anytime.

Get a Quote

What is the difference between this product and a standard bridge crane?

The low-headroom crane positions the hook closer to the beam compared to traditional models. This raises the lifting point of the hook, thereby increasing the available lifting height within the same building.

What lifting capacities are available for selection?

to 20 tons. The double-girder design can provide a larger capacity. However, our load capacity and other parameters can all be customized.

Can it be installed directly without changing the building structure?

Yes. This product is designed for customers in limited spaces that cannot be changed.

Can the crane be customized?

Yes. We provide customized solutions for customers based on their actual situations.

What information do I need to provide to you?

Load capacity, lifting height, required power voltage, span, and so on. For more details, you can click below and communicate with our team. We will reply to you as soon as possible and provide you with high-quality service.
