Motorized Gantry Crane
The motorized gantry crane travels on powered end carriages, so it moves heavy materials safely and efficiently in factories, warehouses, steel mills, and shipyards.
It also reduces manual work and improves handling efficiency.
You can choose a single-girder or double-girder design, and we customize each crane to fit your lifting requirements and working conditions.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Specifications
- Design
- Why-Us
- Faq
Products Overview
They operate smoothly and can be applied in steel manufacturing, precast concrete, shipbuilding, logistics and other scenarios. The electric models can reduce manual labor, increase efficiency and shorten processing time.
Key Features
01
Smooth Electric Drive
The motorized drive system ensures smooth operation. VFD ensures smooth acceleration and braking, reducing load swing.
02
Heavy-Duty Steel Structure
The main beam uses high-strength steel with an optimized design, reducing overall weight while increasing rigidity.
03
Easy Operation
The crane offers pendant, wireless remote, or cab control for flexible use.
04
Low Maintenance Cost
High-quality components minimize daily wear. Modular design simplifies inspection and replacement.
05
Outdoor Use
For outdoor use, optional features include rain covers, wind alarms, track clamps, wind anchors, and anti-corrosion coating.
06
Customized Design
Each crane can be tailored to workshop size, lifting needs, local standards, and environmental conditions.
Not sure which model fits your project? Contact our engineers for selection support.
Typical Applications
Double girder gantry cranes are widely used in:
-
Steel Industry Lifting SolutionsThe steel industry demands robust and reliable lifting solutions.
-
Paper & Pulp Industry Lifting SolutionsPulp and paper mills run around the clock, where materials are constantly moving between processing stages.
-
Electric Flat Transfer Cart SolutionsElectric flat transfer carts provide an efficient solution for internal material transportation. Manufacturers use them to move raw materials, semi-finished products, finished goods, and heavy equipment across production facilities
-
Engineering Crane Lifting SolutionsEngineering projects require flexible and dependable lifting systems that can adapt to changing site conditions and complex structures.

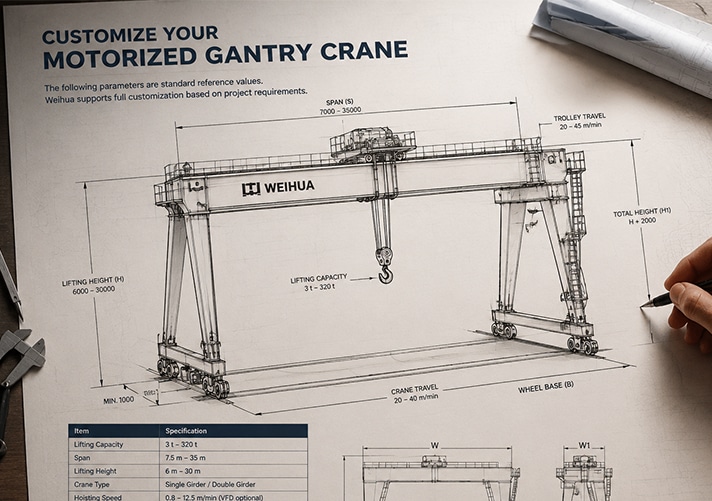

Technical Parameters
The following parameters are standard reference values. Weihua supports full customization based on project requirements.
| Model | 5 Ton | 10 Ton | 20 Ton | 32 Ton | 50 Ton | 100 Ton |
| Crane Type | Single Girder | Single Girder | Double Girder | Double Girder | Double Girder | Double Girder |
| Span (m) | 7.5–30 | 7.5–30 | 10.5–35 | 10.5–35 | 10.5–35 | 16–35 |
| Lifting Height (m) | 6–12 | 6–12 | 9–18 | 9–18 | 9–24 | 12–30 |
| Hoisting Speed (m/min) | 8 | 7 | 3.5 | 3 | 2.7 | 2 |
| Trolley Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 |
| Crane Travel Speed (m/min) | 20 | 20 | 20 | 20 | 20 | 20 |
| Duty Class | A3–A5 | A3–A5 | A5–A6 | A5–A6 | A5–A7 | A6–A7 |
Note: The specifications listed above are for reference only. Technical parameters can customized as needed
Optional Configurations
Power Supply: 220V / 380V / 415V
Control Mode: Pendant / Remote / Cabin
Crane Type: Single Girder / Double Girder
Travel Control: Fixed Speed / VFD
Duty Class: A3–A8
Surface Finish: Standard Paint / Epoxy Coating
Not sure which model fits your project? Contact our engineers for selection support.
Customization Service
Every application is different. Our engineers design each motorized gantry crane to match your working conditions, including:
Lifting capacity
Span and lifting height
Workshop layout
Operating environment
Control and power options
We will help you select the right configuration to improve safety, efficiency, and long-term performance.
Contact our engineering team for a solution designed for your project.
Why Choose Weihua Crane?
Every project starts with your requirements. We design the crane around your application, check every detail before delivery, and continue to support you after installation.
Our strengths include:
Over 30 years of manufacturing experience
Exported to 130+ countries
Advanced production facilities and strict quality control
Certified with ISO, CE, SGS standards
Strong engineering and customization capability
We don’t just supply cranes — we deliver complete lifting solutions.
Have Questions About motorized gantry cranes?
Every lifting project is different, so choosing the right crane takes more than comparing specifications. Capacity, span, lifting height, and site conditions all matter.
Tell us about your project, and our engineers will recommend a solution that fits your application.
An motorized gantry crane combines electric lifting with powered travel. It helps move heavy materials around the workplace and suits factories, warehouses, steel plants, and outdoor yards.
The lifting capacity should be determined based on multiple factors, including the weight of the loads to be lifted, the weight of related attachments, and a proper safety margin.
Yes, it can. For outdoor applications, we provide rain covers, windproof devices, anti-corrosion coatings, and other weather-resistant options.
We offer pendant control, wireless remote control, and cabin control. The best choice depends on your operating environment and production process.
Yes. Every motorized gantry crane is built around your project. Simply share your requirements, and our engineers will help you choose the right configuration.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
