Grab Bucket Overhead Crane

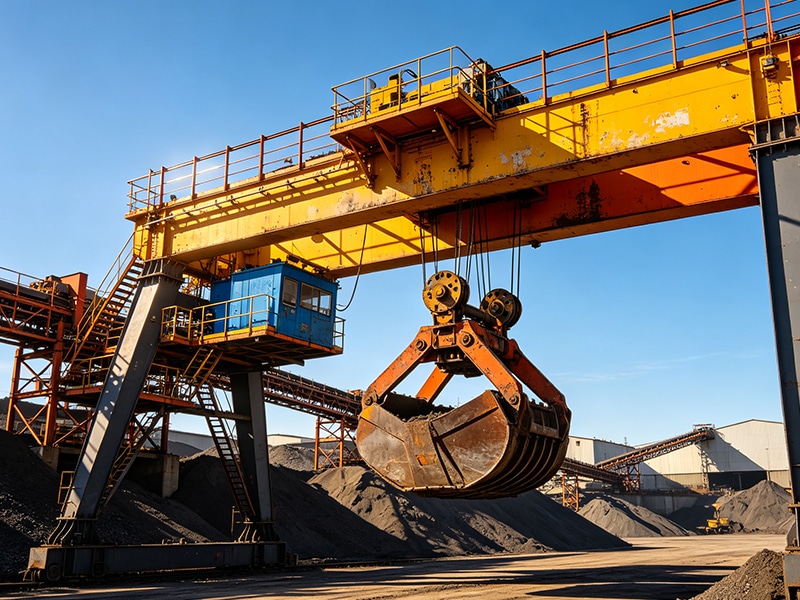

The Grab Bucket Overhead Crane is designed for handling loose and bulk materials such as coal, ore, sand, scrap and similar materials. A motorized grab bucket works with the overhead crane to pick up, move and release materials within the working area. With a double-girder structure as a common configuration, the crane can be matched to different lifting capacities, grab volumes, spans and working conditions. The actual configuration depends on the material density, handling cycle and layout of the site.
Trusted by Global Industrial Clients
5000+ Crane Projects Delivered
ISO / CE Certified Manufacturer
Serving Steel, Logistics, Construction Industries
24/7 Technical Support
Share To:
- Overview
- Features
- Applications
- Parameters
- Customization
- Why-Us
- Faq
Products Overview
The Grab Bucket Overhead Crane combines an overhead crane with a grab bucket for bulk material handling. Its capacity, grab volume, span and control system can be configured according to the material and working conditions.
Key Features
01
Efficient Bulk Material Handling
The grab bucket handles loose materials such as coal, ore, sand, and scrap with ease.
02
Suitable for Heavy-Duty Work
Built for regular material handling in demanding industrial environments.
03
Flexible Grab Bucket Operation
The bucket opens and closes to suit different loading and unloading tasks.
04
Stable Crane Movement
Smooth lifting, trolley travel, and bridge travel help keep material handling under control.
05
Adaptable Bucket Options
Different grab bucket designs can match the material type and handling conditions.
06
Easy Control and Operation
Pendant, cabin, or remote control options can be selected according to the working environment.
Typical Applications
The Grab Bucket Overhead Crane is mainly used for:
-
Electric Flat Transfer Cart SolutionsElectric flat transfer carts provide an efficient solution for internal material transportation. Manufacturers use them to move raw materials, semi-finished products, finished goods, and heavy equipment across production facilities
-
Warehouse & Logistics Lifting SolutionsIn warehouse and logistics operations, speed and accuracy matter just as much as safety.
-
Jib Crane Lifting SolutionsA jib crane is a type of lifting equipment. Its horizontal boom is connected to a vertical support and can rotate at multiple angles, enabling radial lifting movement within a fixed working area.
-
Electric Hoist Lifting SolutionsAn electric hoist is a mobile lifting device widely used in industrial production and material handling. It effectively reduces manual labor while enhancing workplace safety and efficiency, making it the top choice for many companies.
They are suitable for most general-purpose lifting tasks.

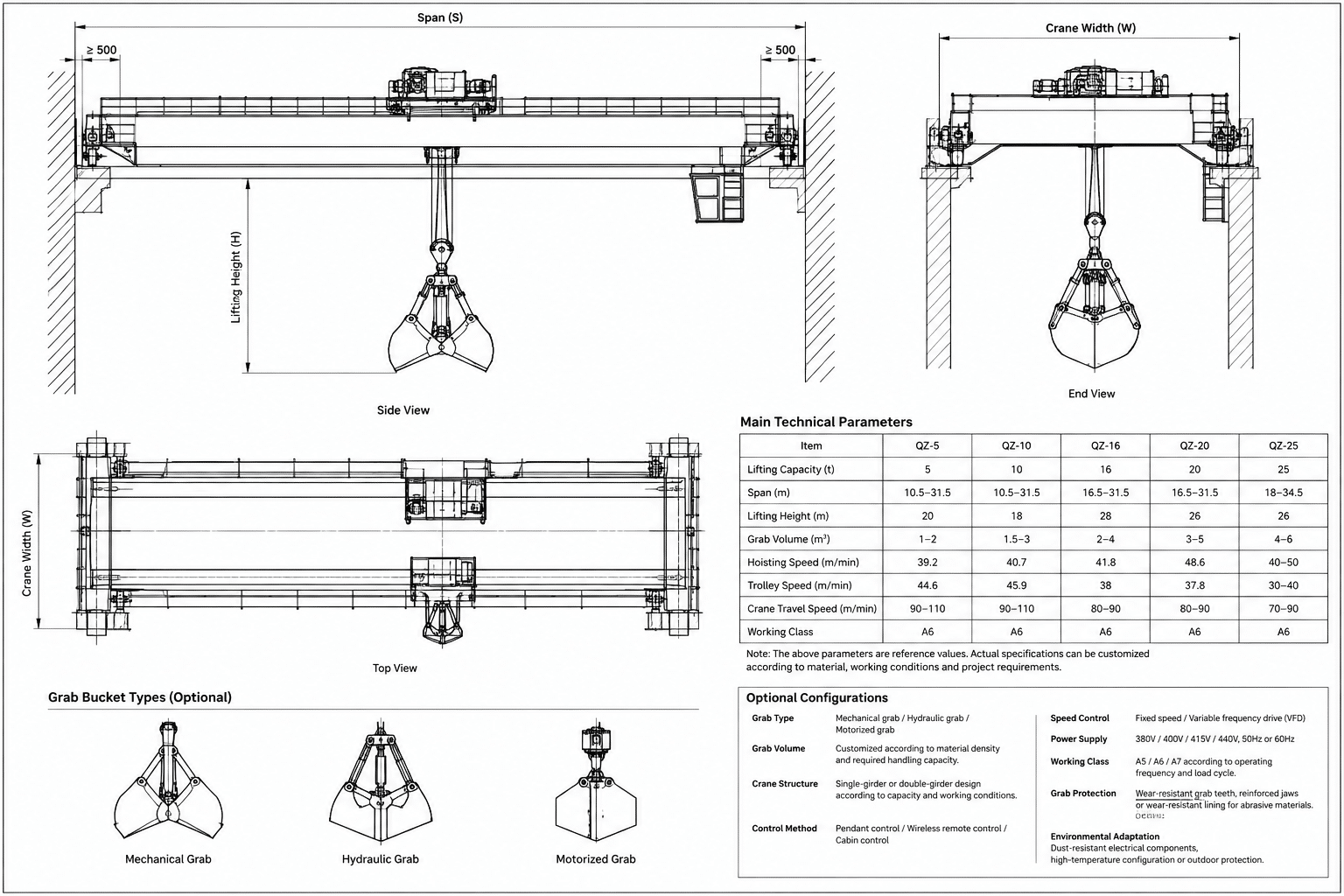

Technical Parameters
The following specifications are for standard reference. Weihua Crane can customize according to your project requirements.
| Item | QZ-5 | QZ-10 | QZ-16 | QZ-20 | QZ-25 |
| Lifting Capacity | 5 t | 10 t | 16 t | 20 t | 25 t |
| Span | 10.5–31.5 m | 10.5–31.5 m | 16.5–31.5 m | 16.5–31.5 m | 18–34.5 m |
| Lifting Height | 20 m | 18 m | 28 m | 26 m | 26 m |
| Grab Volume | 1–2 m³ | 1.5–3 m³ | 2–4 m³ | 3–5 m³ | 4–6 m³ |
| Hoisting Speed | 39.2 m/min | 40.7 m/min | 41.8 m/min | 48.6 m/min | 40–50 m/min |
| Trolley Speed | 44.6 m/min | 45.9 m/min | 38 m/min | 37.8 m/min | 30–40 m/min |
| Crane Travel Speed | 90–110 m/min | 90–110 m/min | 80–90 m/min | 80–90 m/min | 70–90 m/min |
| Working Class | A6 | A6 | A6 | A6 | A6 |
Note: The specifications listed above are for reference only.
Technical parameters can be customized as needed
Optional Configurations
Grab Type
Mechanical grab / Hydraulic grab / Motorized grab
Grab Volume
Customized according to material density and required handling capacity.
Crane Structure
Single-girder or double-girder design according to capacity and working conditions.
Control Method
Pendant control / Wireless remote control / Cabin control
Speed Control
Fixed speed / Variable frequency drive (VFD)
Power Supply
380V / 400V / 415V / 440V, 50Hz or 60Hz
Working Class
A5 / A6 / A7 according to operating frequency and load cycle.
Grab Protection
Wear-resistant grab teeth, reinforced jaws or wear-resistant lining for abrasive materials.
Environmental Adaptation
Dust-resistant electrical components, high-temperature configuration or outdoor protection can be selected according to site conditions.
Customization Service
Each waste yard, bulk material storage site has different dimensions, material handling needs, and operating conditions, so the Grab Bucket Overhead Crane is customized to each project.
Lifting & grabbing requirements
Working duty and operating environment
Control method and power supply
Runway rail arrangement and grab bucket configuration
Safety devices and other required protection systems
Our engineers will recommend a suitable configuration after reviewing your site layout and bulk material handling requirements.
Why Choose Our European Type Overhead Crane?
We customize every crane to fit your project. We inspect each crane before shipment and use reliable components for long-term operation. Our team also provides technical support and spare parts after delivery.
Our strengths include:
Proven design for industrial use
Stable quality and performance
Flexible customization capability
Fast response for international customers
Frequently Asked
Questions
Need Help Choosing the Right Crane?
The answers below cover some of the most common questions about European Type Overhead Cranes.
It is mainly used for loose bulk materials such as coal, ore, sand, and scrap. The bucket type can be selected according to the material being handled.
The listed models range from 5 to 25 tons. The right capacity depends on the material weight and your handling requirements.
Grab volume ranges from 1 to 6 m³ across the listed models. The actual bucket size can be matched to the material and crane capacity.
The available span ranges from 10.5 to 34.5 m, depending on the model. The final span should match the existing building and working area.
These models use A6 working class, which suits regular bulk material handling operations. The actual duty requirements should still be confirmed before selection.
It can be installed in suitable industrial buildings where the supporting structure, runway system, and available space meet the crane’s design requirements.
Get a Quote
To receive an accurate quotation, please provide:
- Lifting capacity
- Span and lifting height
- Working environment
- Power supply
We will respond within 24 hours with a suitable solution.
